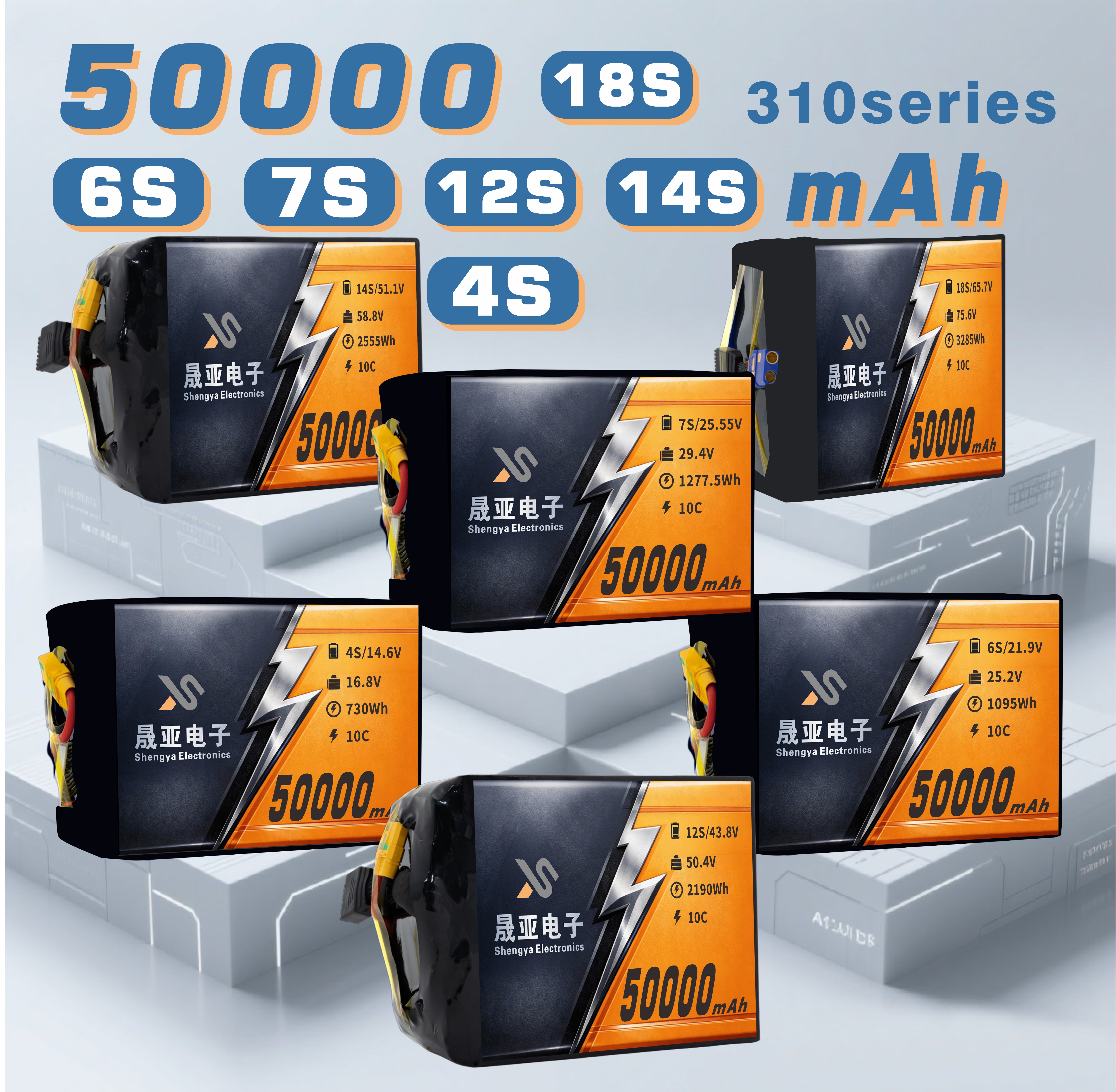

Adopting advanced solid-state lithium-ion battery technology, this product line covers multiple configurations including 4S, 6S, 7S, 12S, 14S and 18S, with a unified rated capacity of 50000mAh to meet the diverse power demands of different industrial UAV models. It features a high discharge rate of 10C and a flexible charging rate of 1-2C, which can provide stable and continuous power support for long-duration industrial UAV operations. Compared with traditional lithium batteries, the solid-state core technology of this battery effectively improves energy density and safety, making it an ideal power source for high-intensity industrial drone missions.

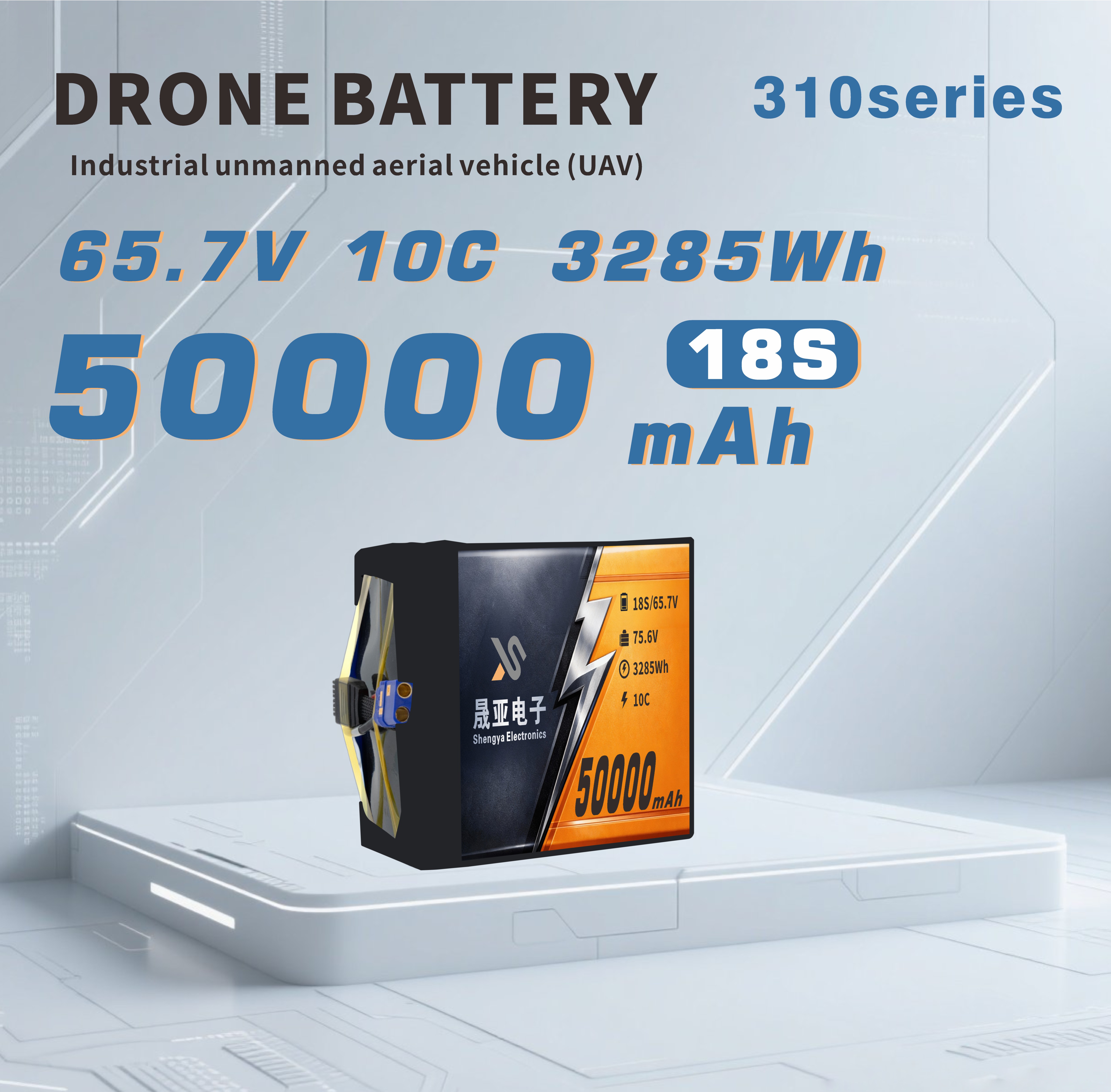

With a rated capacity of 50000mAh, the battery can deliver a maximum energy of up to 3285Wh in the 18S configuration. It supports the long-time flight of industrial UAVs, reducing the frequency of battery replacement during operations and improving work efficiency.
The product has a peak discharge rate of 10C and a charging current of up to 2C (100A). It can be quickly charged in a short time, and the stable discharge performance ensures that the UAV can maintain a good working state even under high-load conditions such as carrying heavy equipment.
Each configuration of the battery has a reasonable operating voltage interval, for example, the 6S model ranges from 16.8V to 25.2V. It can adapt to the complex working environment of industrial UAVs, and there is no obvious voltage drop during operation, ensuring the stability of the UAV's control system and load equipment.

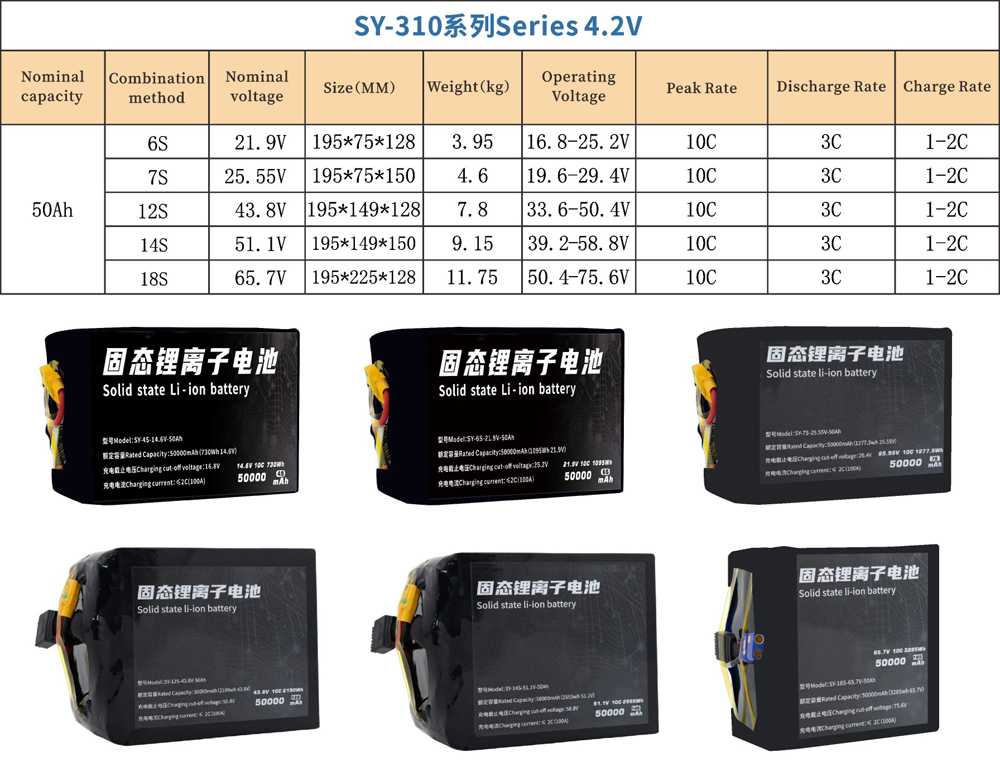

Nominal Capacity | Combination Method | Nominal Voltage | Size (MM) | Weight (kg) | Operating Voltage | Peak Rate | Discharge Rate | Charge Rate |
50000mAh | 6S | 21.9V | 195×75×128 | 3.95 | 16.8-25.2V | 10C | 3C | 1-2C |
50000mAh | 7S | 25.55V | 195×75×150 | 4.6 | 19.6-29.4V | 10C | 3C | 1-2C |
50000mAh | 12S | 43.8V | 195×149×128 | 7.8 | 33.6-50.4V | 10C | 3C | 1-2C |
50000mAh | 14S | 51.1V | 195×149×150 | 9.15 | 39.2-58.8V | 10C | 3C | 1-2C |
50000mAh | 18S | 51.1V | 195×225×128 | 11.75 | 50.4-75.6V | 10C | 3C | 1-2C |
It is suitable for high-voltage power line inspection, oil and gas pipeline patrol and other tasks. The long endurance of the battery allows the UAV to cover a wider range in a single flight, and the stable power output ensures the normal operation of the aerial photography and detection equipment carried by the UAV.
In large-area farmland pesticide spraying and forest resource survey, the battery can support the UAV to complete the operation of multiple plots at one time, reducing the number of round-trips for charging and improving the operation efficiency of agriculture and forestry.
In emergency scenarios such as earthquake and flood disaster areas, the UAV equipped with this battery can quickly carry out terrain survey and trapped personnel search, and the strong adaptability of the battery can cope with the harsh environment of the disaster area.
We provide customized procurement solutions for bulk buyers, including preferential prices for large orders and flexible delivery cycles. Small batch trial orders are also supported to meet the different procurement needs of customers.
The after-sales team provides one-to-one technical guidance, including battery matching suggestions for UAV models, charging and maintenance specifications training. We also provide online technical consultation services to solve customers' problems in a timely manner.
All batteries have passed strict performance and safety tests before leaving the factory. We provide a one-year quality warranty service. If there are non-human quality problems during the warranty period, we will provide free replacement or maintenance services.
