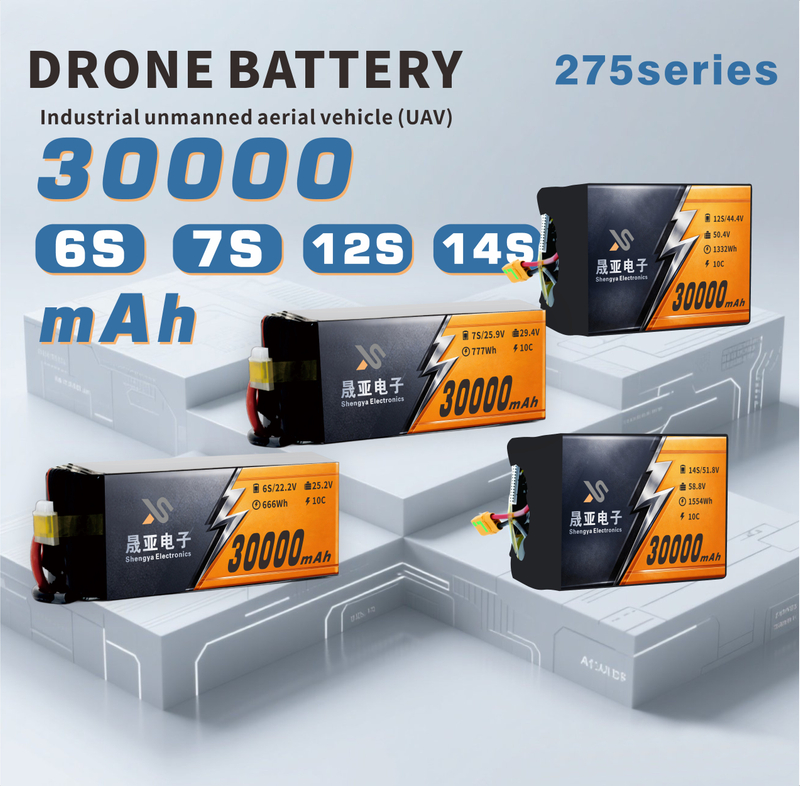

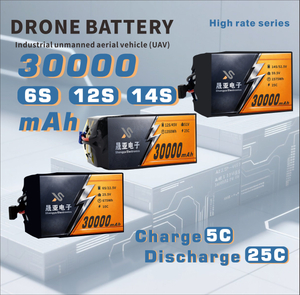

The 275 Series 30000mAh Industrial UAV Battery is a high-performance energy solution tailored for heavy-duty industrial unmanned aerial vehicles (UAVs). Adopting advanced Solid State Li-ion Battery technology, this product line covers 6S, 7S, 12S, and 14S configurations, with nominal voltages ranging from 22.2V to 51.8V and energy density up to 1554Wh. It supports a 10C high discharge rate and a maximum 2C (60A) charging current, perfectly meeting the long-endurance and high-load operation demands of industrial UAVs. The battery features a robust structural design and stable output performance, making it a reliable power core for various industrial aerial operations.
With a rated capacity of 30000mAh, the battery provides extended flight time for industrial UAVs. The 14S configuration delivers 1554Wh of energy, enabling heavy-duty UAVs to complete complex tasks such as long-distance inspection and large-area mapping in one flight without frequent battery replacement.
The battery supports a maximum charging current of ≤60A (2C rate). It significantly shortens charging downtime between missions. This advantage is critical for scenarios requiring continuous UAV operations, such as emergency rescue and industrial patrols.
The operating voltage range of the battery covers 16.8V–58.8V across different configurations. It maintains stable output even under extreme load conditions. The solid-state lithium-ion technology enhances safety and cycle life, reducing the overall operational cost for users.

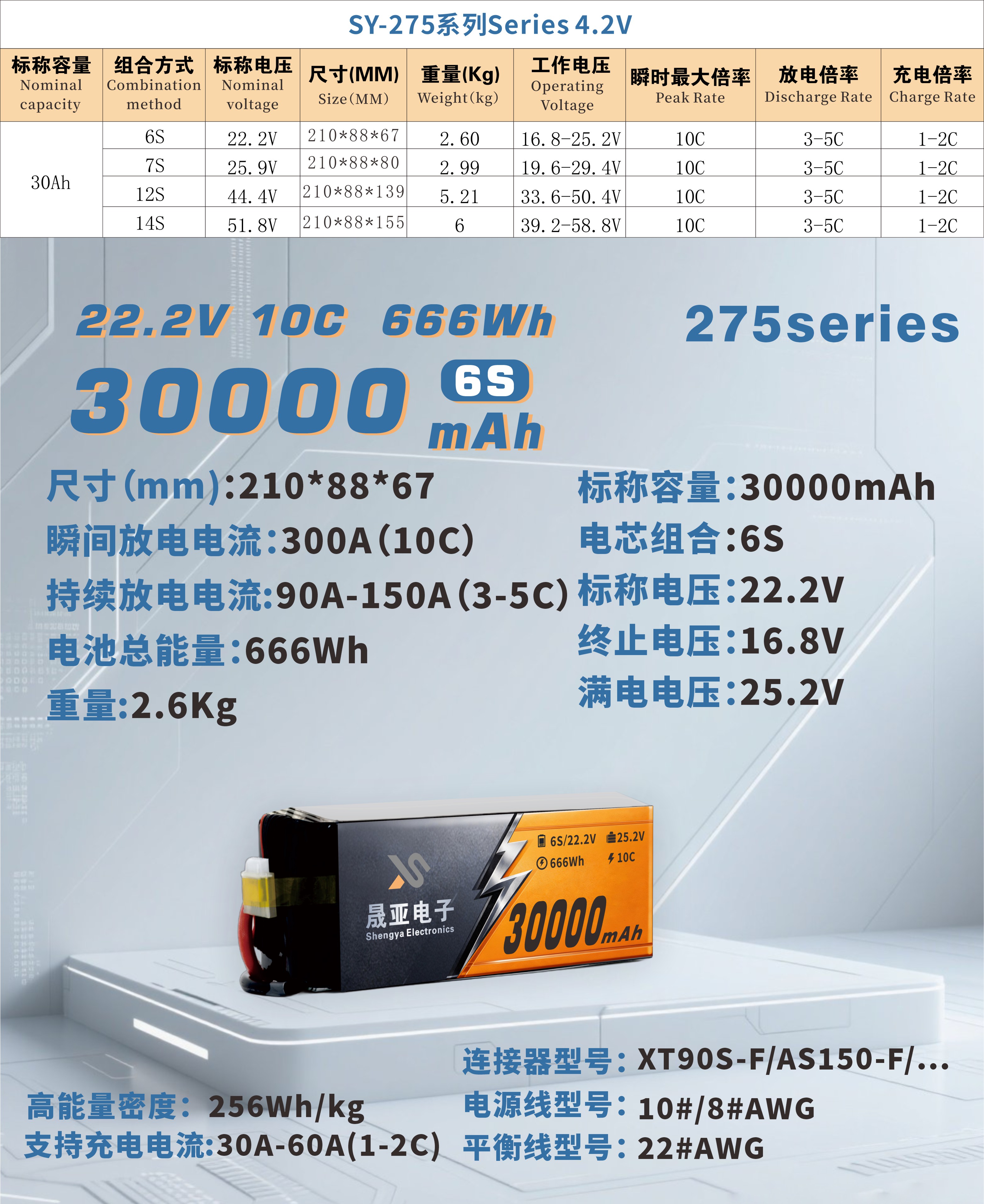

Combination Method | Model | Rated Capacity | Nominal Voltage | Charging Cut-off Voltage | Charging Current | Size (MM) | Weight (kg) | Operating Voltage | Peak Discharge Rate |

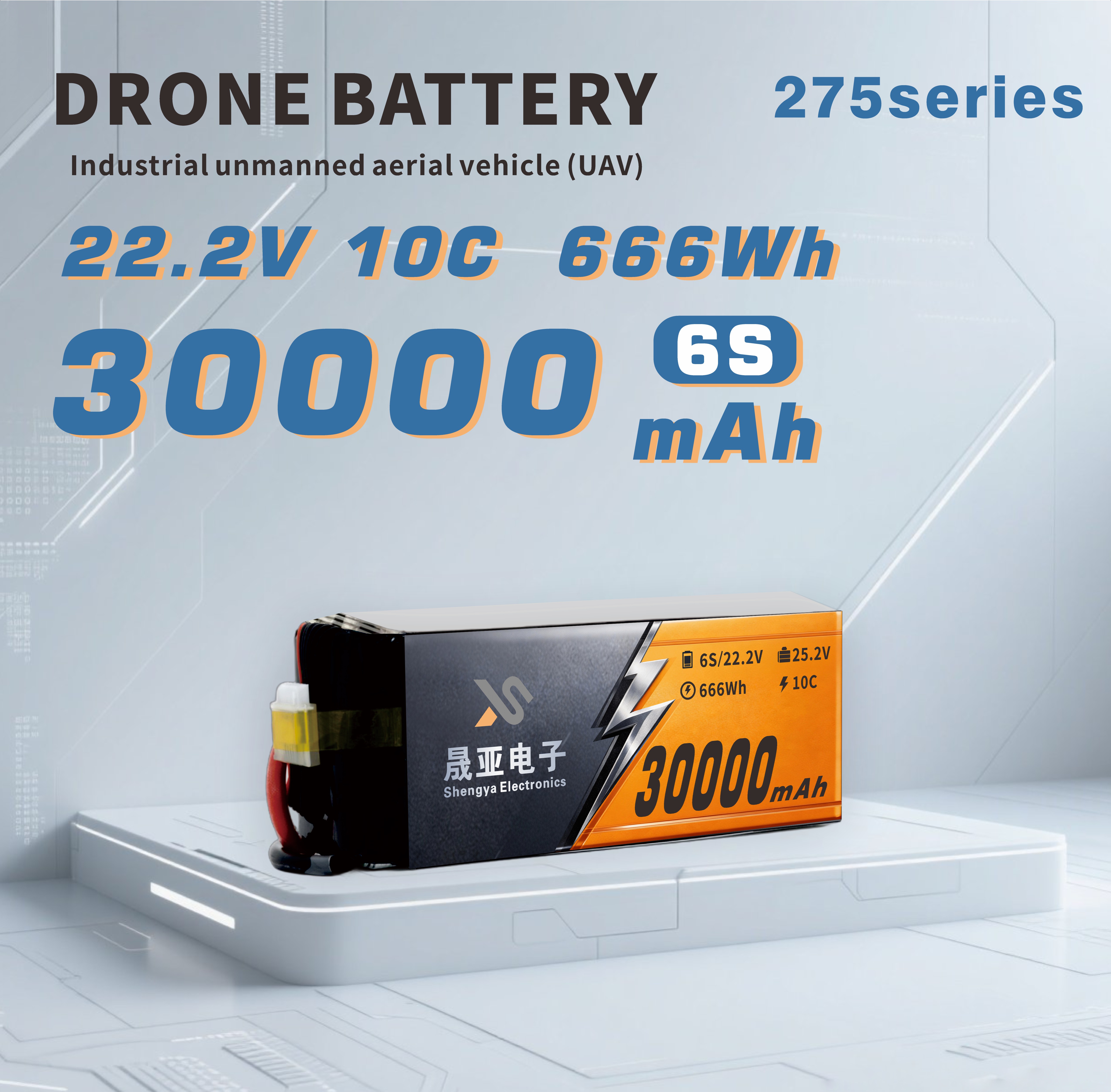

6S | SY-6S-22.2V-30Ah | 30000mAh | 22.2V | 25.2V | ≤60A | 210×88×67 | 2.60 | 16.8–25.2V | 10C |

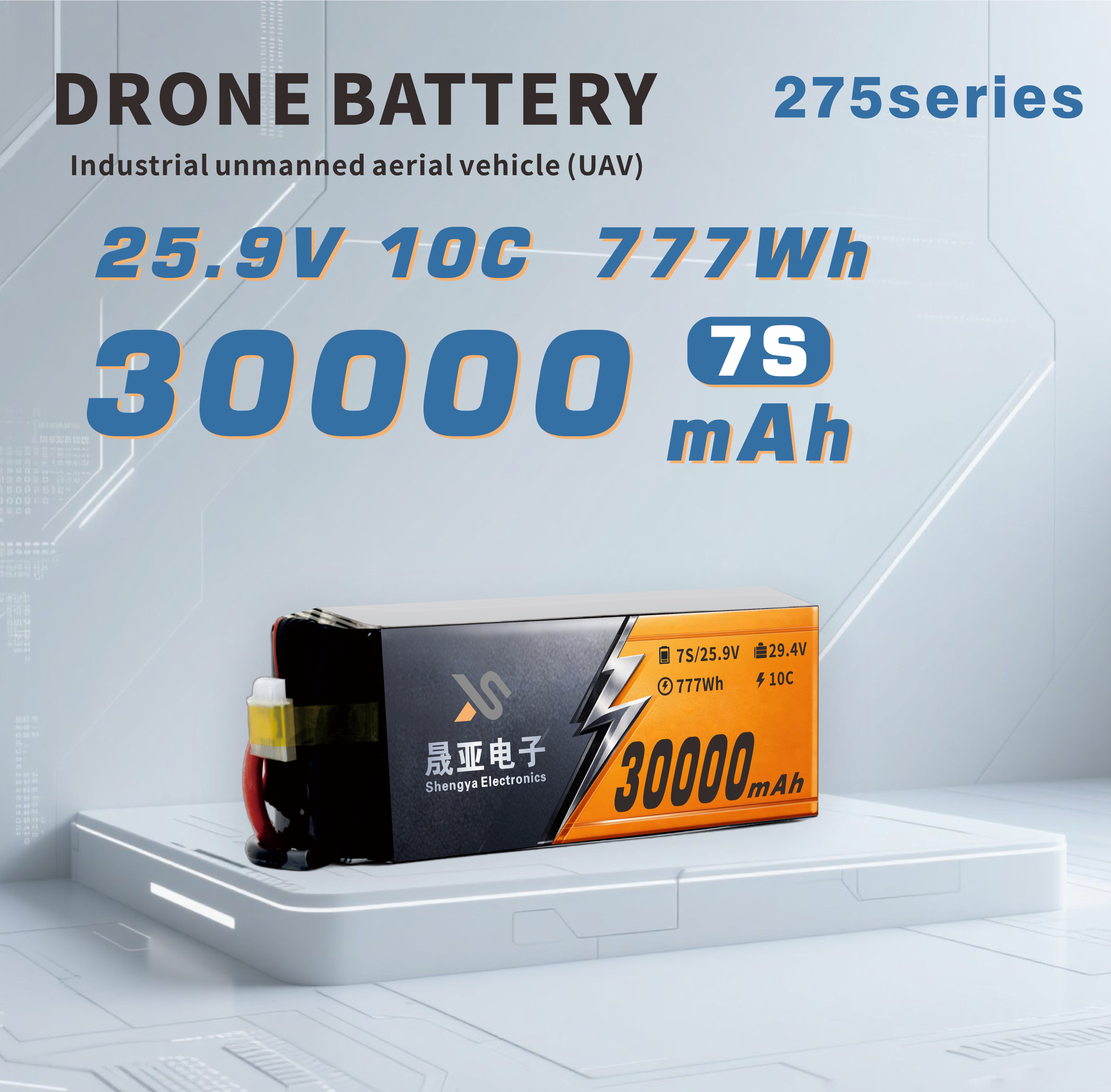

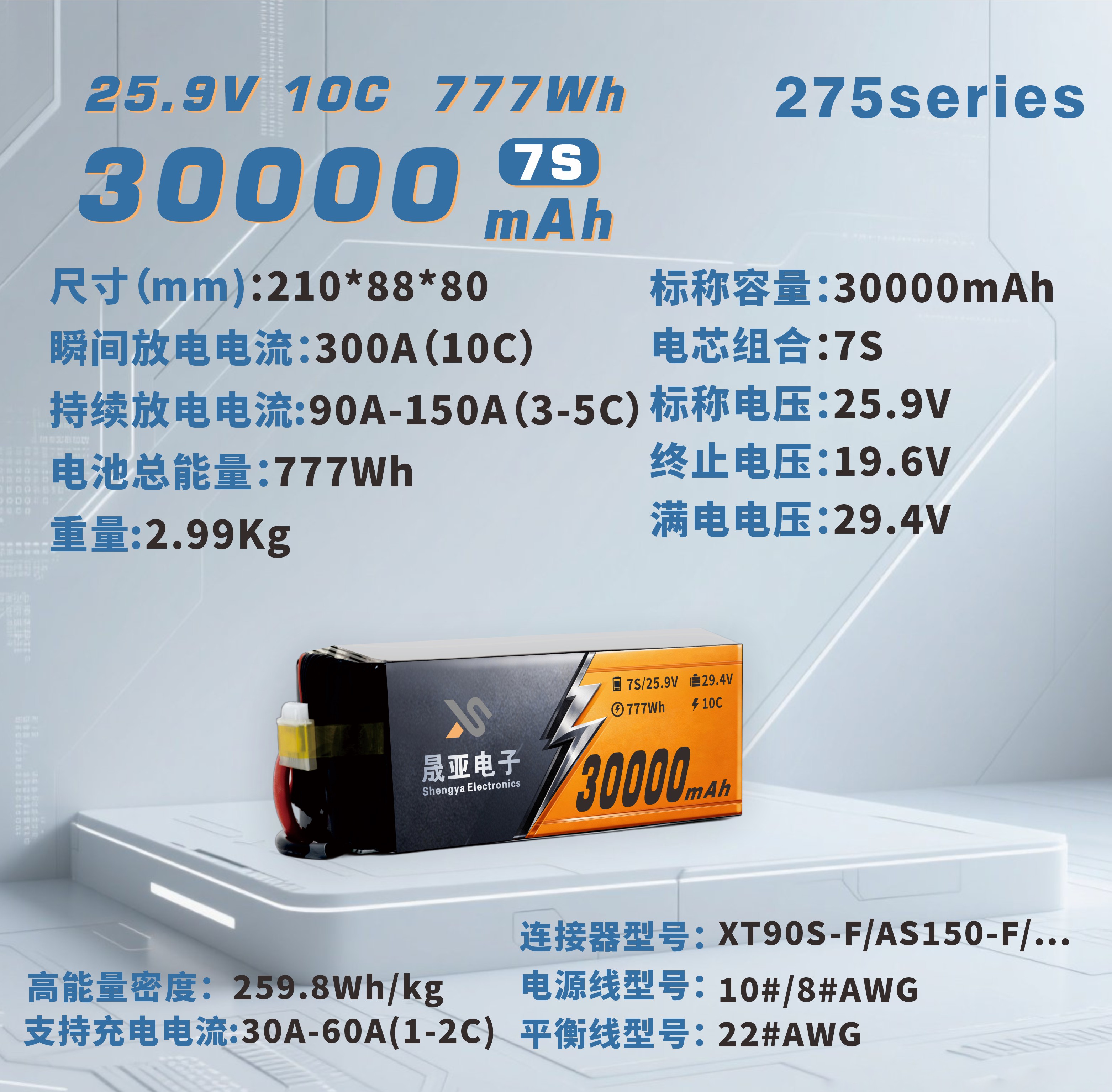

7S | SY-7S-25.9V-30Ah | 30000mAh | 25.9V | 29.4V | ≤60A | 210×88×80 | 2.99 | 19.6–29.4V | 10C |

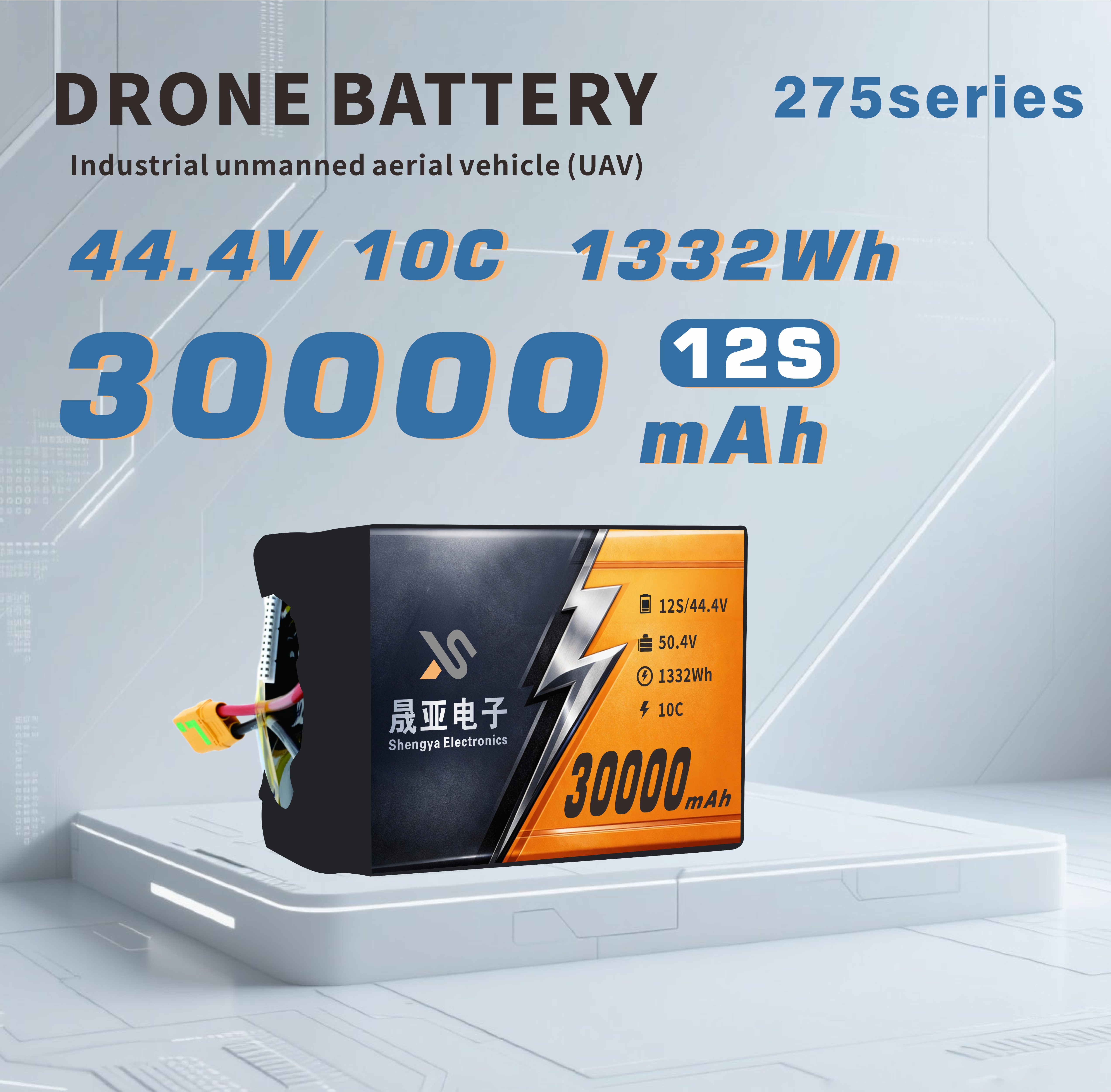

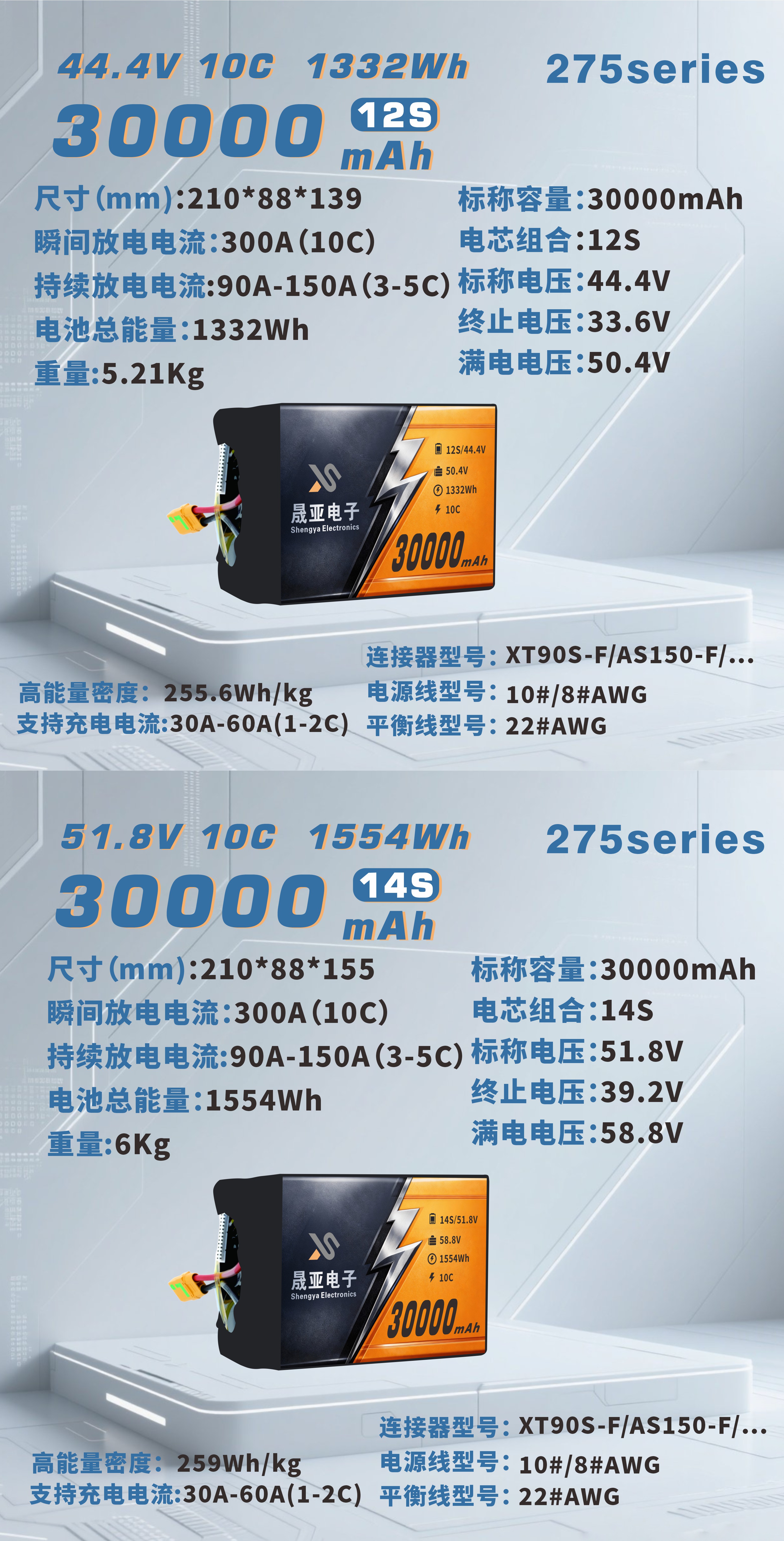

12S | SY-12S-44.4V-30Ah | 30000mAh | 44.4V | 50.4V | ≤60A | 210×88×139 | 5.21 | 33.6–50.4V | 10C |

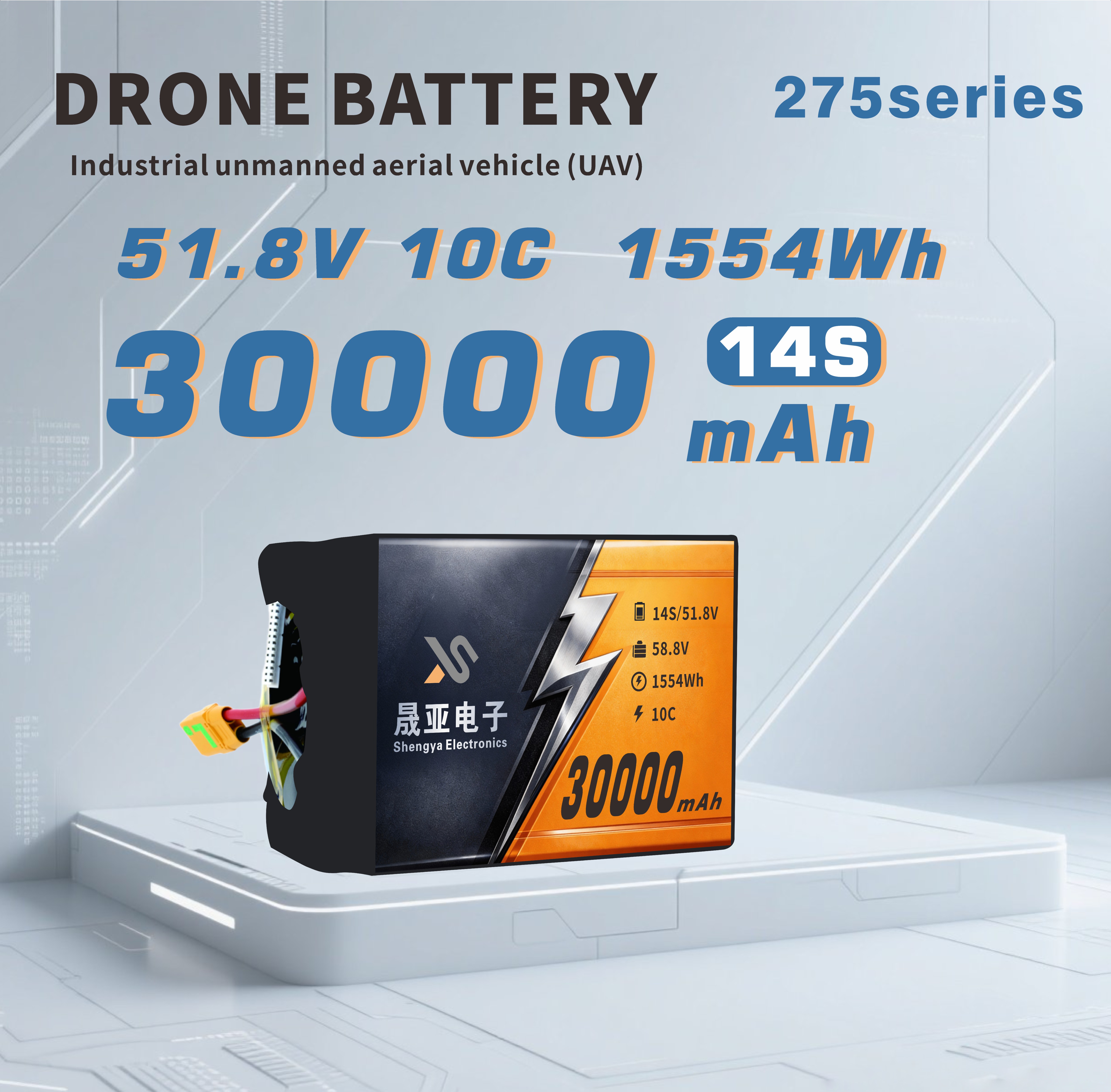

14S | SY-14S-51.8V-30Ah | 30000mAh | 51.8V | 58.8V | ≤60A | 210×88×155 | 6.00 | 39.2–58.8V | 10C |
The high-voltage 12S/14S configurations are ideal for UAVs used in power line inspection, wind turbine maintenance, and pipeline patrol. The large capacity ensures the UAV can cover a wide area in a single flight.
The stable output performance of the battery meets the high-precision positioning requirements of surveying UAVs. The 6S/7S configurations are suitable for lightweight mapping drones operating in urban and suburban areas.
The 14S high-energy configuration supports small UAV logistics systems, enabling the delivery of emergency supplies in areas with complex terrain where ground transportation is inconvenient.
We accept both bulk and small-batch orders to meet the diverse needs of different customers. Customized services for battery specifications are also available based on specific UAV models.
Our team provides one-on-one pre-sales consulting to help customers select the most suitable battery configuration. After-sales, we offer free maintenance guidance and troubleshooting services within the warranty period.
We have a global logistics network to ensure timely delivery of products. For urgent orders, we provide priority production and expedited shipping options.
