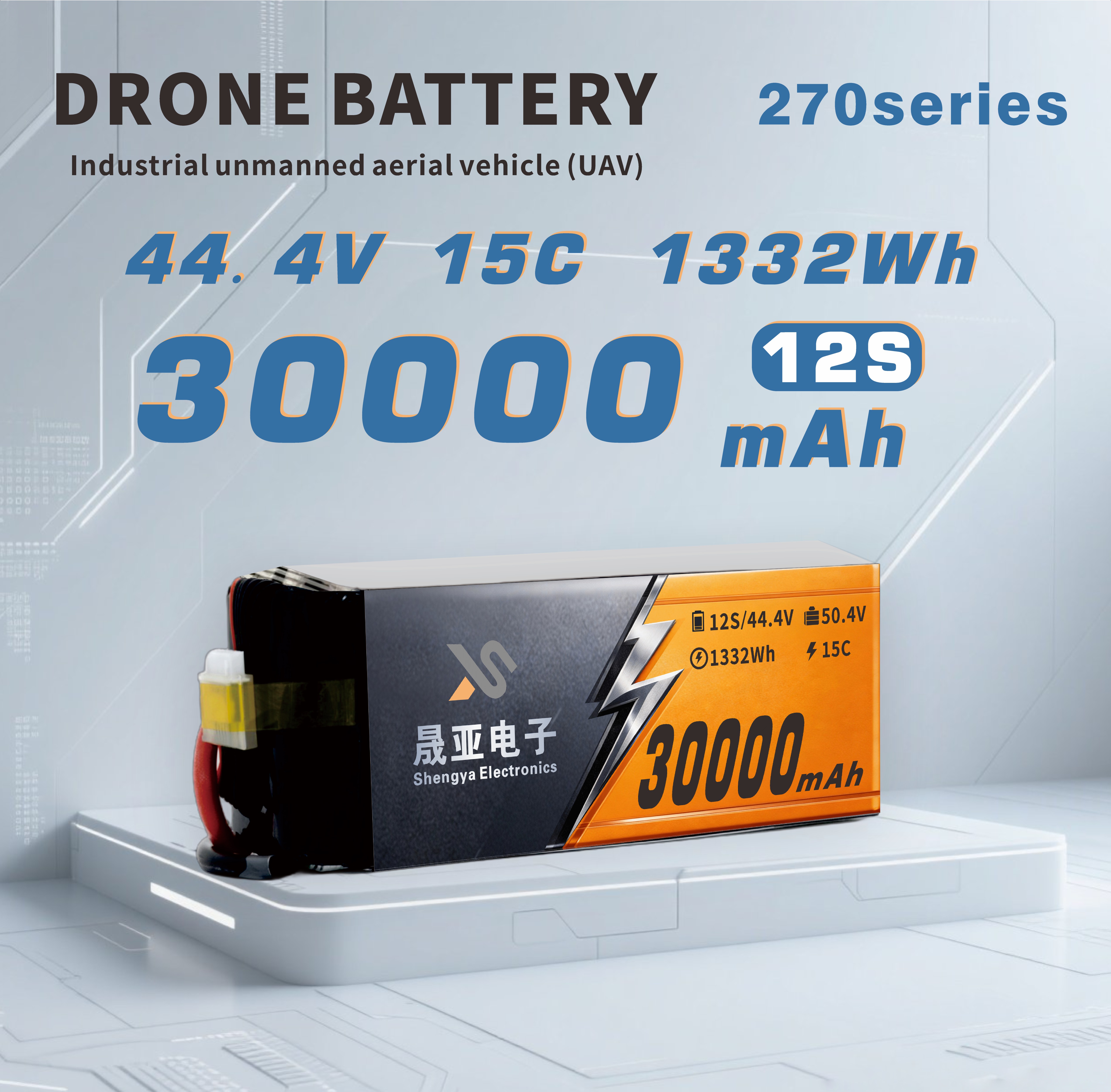

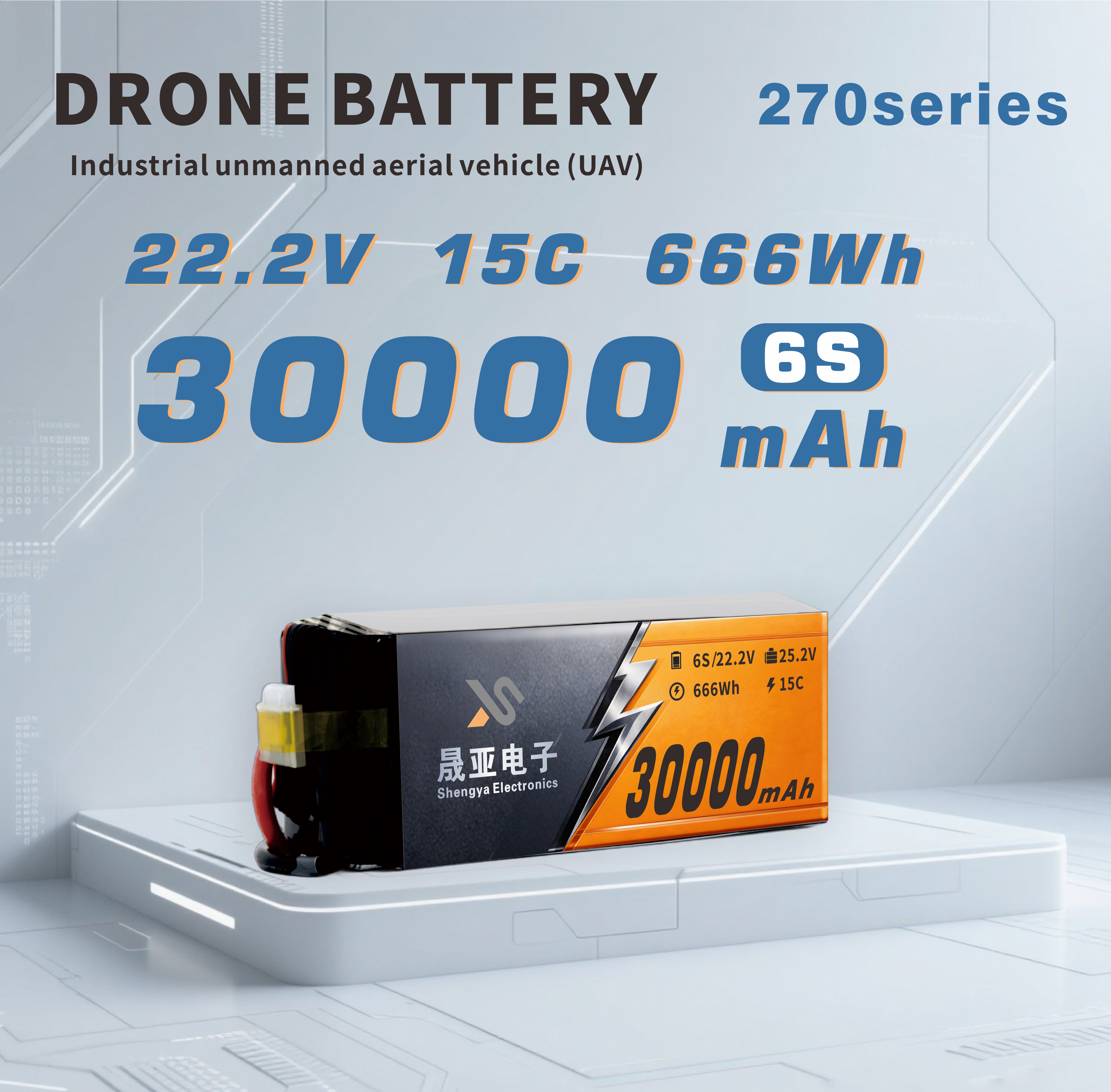

The SY-270 High Voltage Series 30000mAh Industrial UAV Solid State Li-ion Battery is a high-performance power solution designed exclusively for industrial unmanned aerial vehicles. Adopting advanced solid state battery technology, this product provides stable and reliable power support for UAVs operating in harsh environments. It comes in two core configurations: 6S and 12S, with nominal voltages of 22.5V and 45V respectively, and the nominal capacity reaches 30Ah (30000mAh). The battery supports a peak discharge rate of 10C and a continuous discharge rate of 5C, which can meet the high-power operation requirements of industrial UAVs such as long-time hovering and heavy-load flight. Its operating voltage ranges from 16.8V to 50.4V, covering the full working cycle of UAVs from take-off to landing. As a key component of industrial UAV systems, this high-rate solid state battery effectively balances energy density and safety, and has become the preferred power source for industrial UAV manufacturers and operators.
This battery supports a maximum discharge rate of 25C, which can instantly output large current to drive industrial UAVs to complete high-intensity tasks such as rapid ascent and heavy-load transportation. The charging rate can reach 5C, with a maximum charging current of 150A, which shortens the charging time of UAVs and improves the daily operation efficiency of equipment.
Compared with traditional lithium-ion batteries, the solid state electrolyte used in this product eliminates the risk of leakage and thermal runaway, and has excellent stability in high and low temperature environments. It can operate normally in complex working conditions such as high altitude and high humidity, reducing the failure rate of UAVs during operation.
The 6S version of the battery weighs only 2.6kg, and the 12S version weighs 5.2kg. It has a lightweight design under the same capacity level. The compact size (6S: 210×88×66 mm; 12S: 210×88×133 mm) can be perfectly integrated into most industrial UAV frames, reducing the overall weight of UAVs and extending the single flight time.
Parameter | 6S Configuration | 12S Configuration |
Nominal Capacity | 30000mAh (30Ah) | 30000mAh (30Ah) |
Combination Method | 6S | 12S |
Nominal Voltage | 22.5V | 45V |
Size (mm) | 210×88×66 | 210×88×133 |
Weight (kg) | 2.6 | 5.2 |
Operating Voltage | 16.8-25.2V | 33.6-50.4V |
Peak Rate | 10C | 10C |
Discharge Rate | 5C | 5C |
Charge Rate | 1-2C | 1-2C |
This battery is suitable for UAVs engaged in power line inspection, wind turbine maintenance and bridge detection. Its high discharge rate ensures that UAVs can maintain stable flight when carrying high-precision detection equipment such as thermal imagers and high-definition cameras.
For agricultural spraying UAVs, the 30000mAh large capacity can support long-time operation in the field, reducing the number of charging times and improving the efficiency of pesticide spraying and fertilizer spreading.
In emergency scenarios such as disaster search and rescue and post-disaster mapping, the battery's stable performance in harsh environments can ensure that UAVs complete tasks such as real-time image transmission and terrain mapping without interruption.
The minimum order quantity of this product is 1 unit. Customers can directly inquire about the price or add the product to the shopping cart through the official website for ordering. We support customized services for special requirements such as battery size and connector type.
Our team provides one-stop technical support, including battery matching guidance, charging scheme design and after-sales maintenance. After the product is sold, we provide a warranty service. If there are quality problems, we will provide replacement or maintenance services in a timely manner.
We have established a sound logistics network to ensure that products are delivered to customers in the shortest time. We will provide real-time logistics tracking information to help customers grasp the arrival time of goods.
