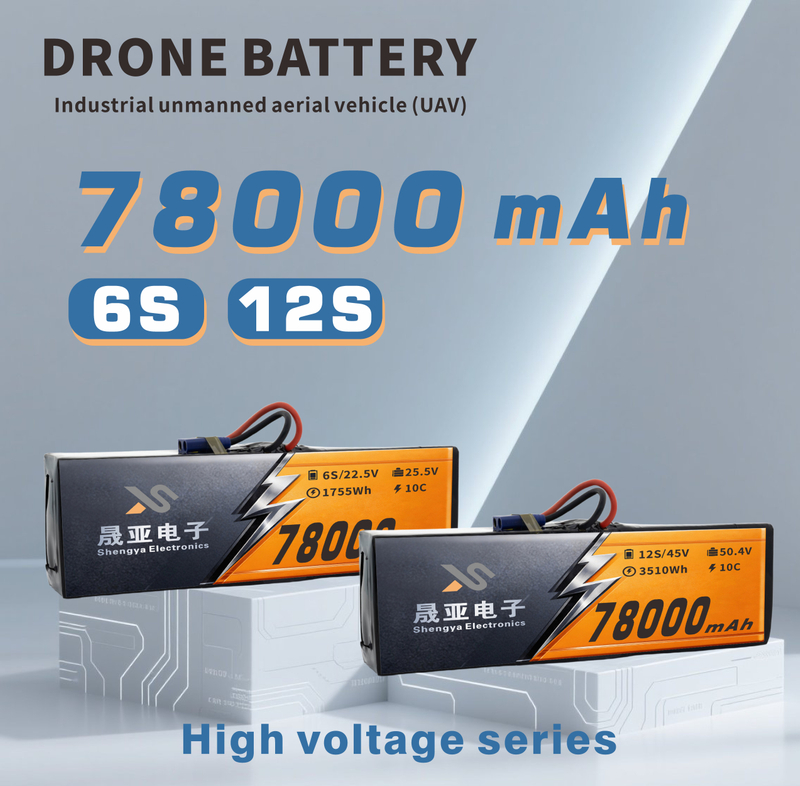

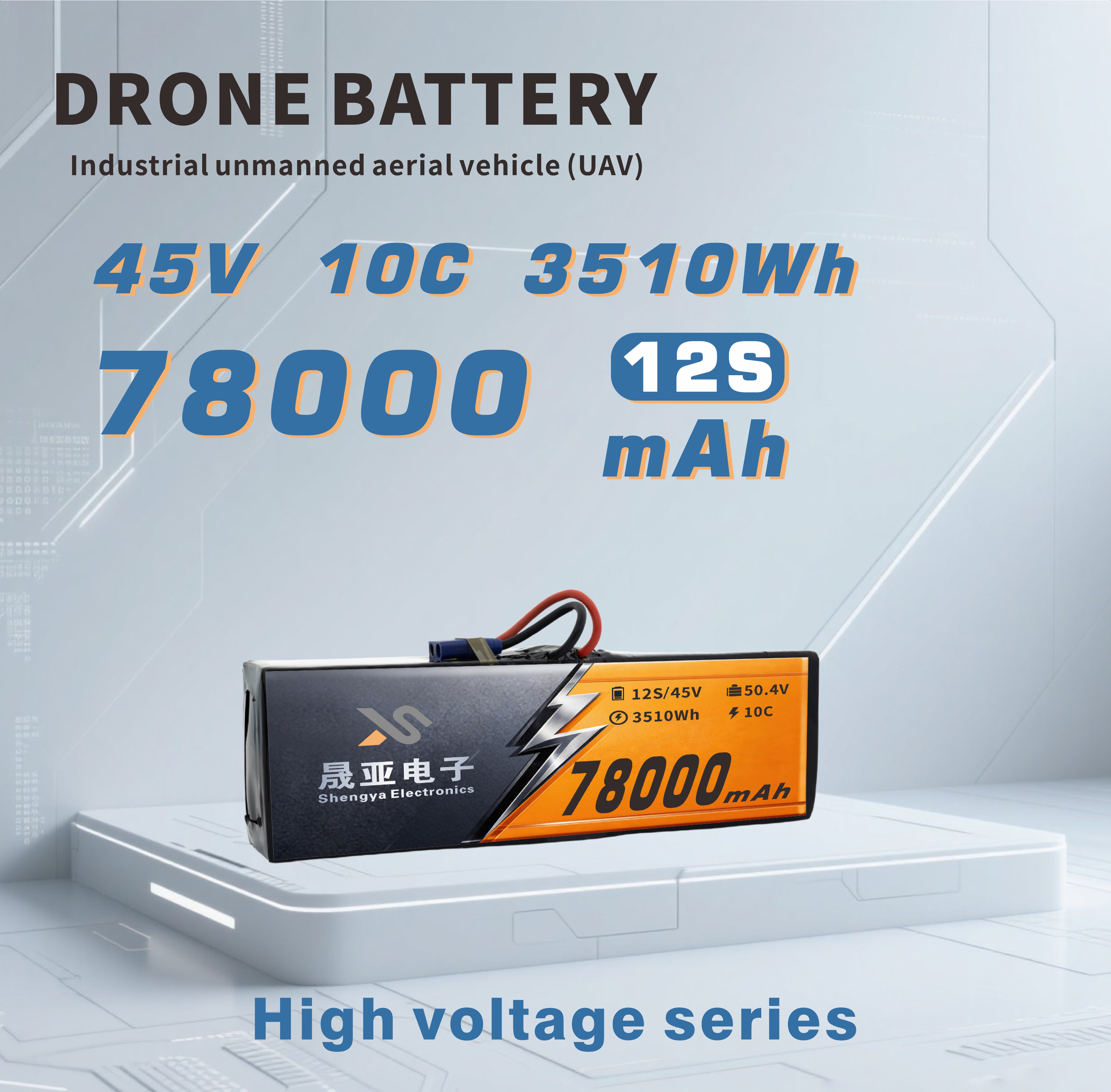

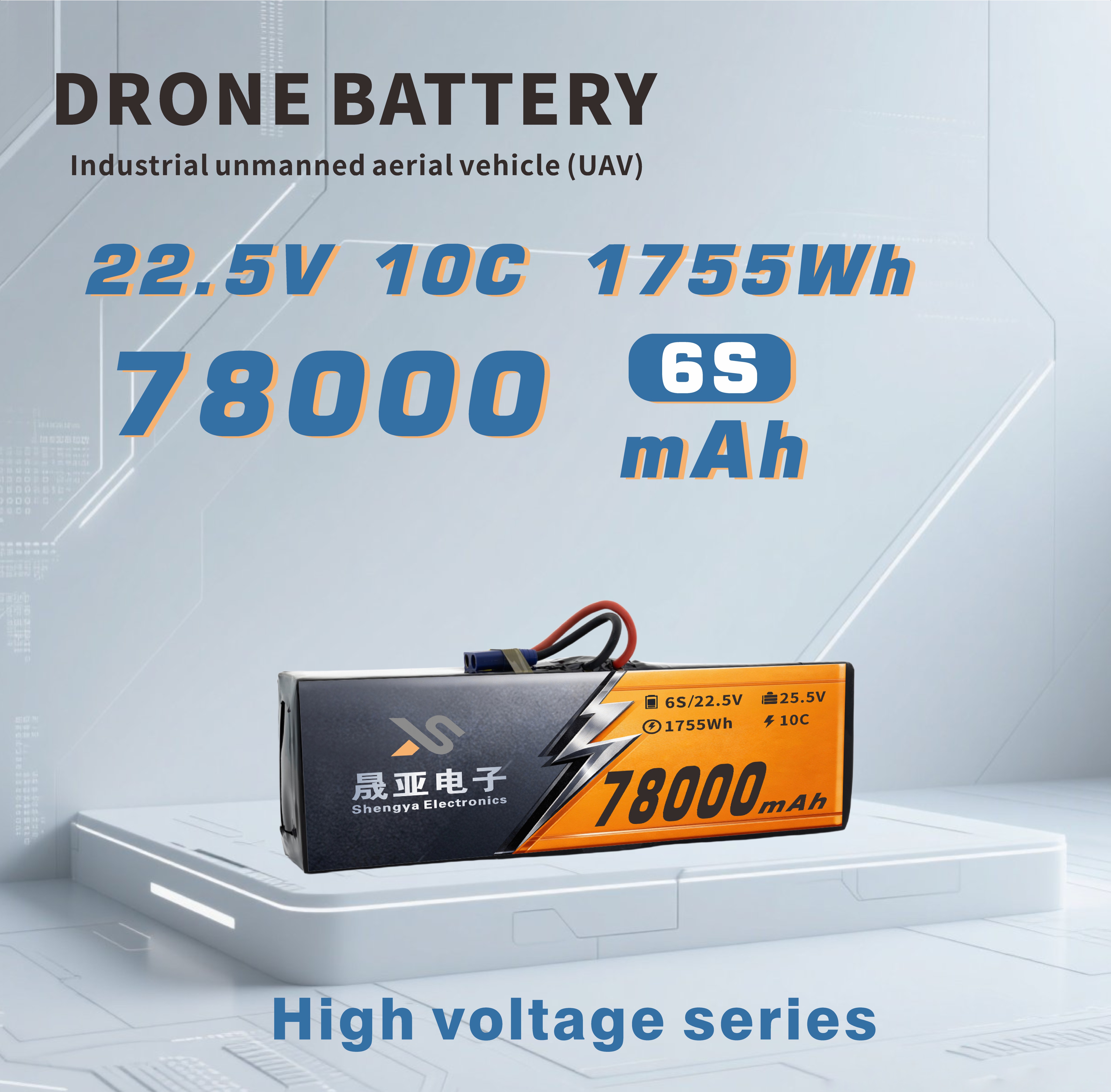

The 270 Series High-Voltage Industrial UAV Battery is a high-capacity power solution specially designed for long-endurance industrial UAVs, adopting advanced Solid State Li-ion Battery technology. It offers 6S and 12S two cell series configurations, with a nominal capacity of up to 78000mAh and a 10C peak discharge rate, which can provide strong power support for high-load and long-time flight missions of UAVs. As a high-voltage series product, its nominal voltage reaches 22.5V (6S) and 45V (12S) respectively, which can effectively reduce the energy loss during power transmission and improve the energy utilization rate of UAVs. The product is optimized for structural design, suitable for large industrial UAV platforms, and can meet the needs of long-endurance field operations.
With a nominal capacity of 78000mAh, the battery can significantly extend the single flight time of industrial UAVs. It can reduce the number of charging times during large-area missions such as farmland plant protection and urban topographic surveying, and improve the overall mission efficiency.
The high-voltage series configuration of 22.5V/45V reduces the current loss during power transmission of UAVs. It can ensure stable power output under high-load conditions such as carrying heavy surveying equipment, and has better energy-saving performance compared with standard-pressure batteries.
Adopting Solid State Li-ion Battery technology, the product has higher thermal stability and lower risk of thermal runaway compared with traditional LiPo batteries. It can adapt to harsh working environments such as high temperature and low temperature, and improve the operational safety of UAVs.

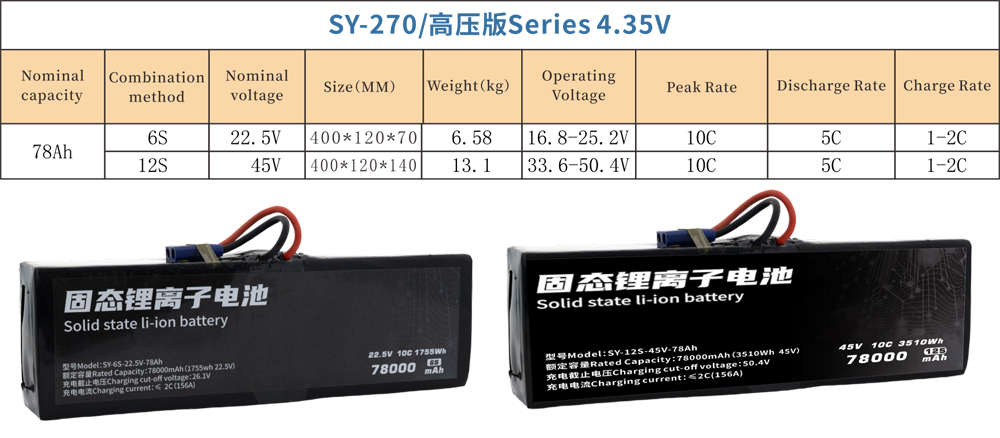

Configuration | Model | Nominal Capacity | Nominal Voltage | Size (mm) | Weight (kg) | Operating Voltage | Peak Rate | Discharge Rate | Charge Rate |
6S | SY-6S-22.5V-78Ah | 78000mAh | 22.5V | 400×120×70 | 6.58 | 16.8-25.2V | 10C | 5C | 1-2C |
12S | SY-12S-45V-78Ah | 78000mAh | 45V | 400×120×140 | 13.1 | 33.6-50.4V | 10C | 5C | 1-2C |
It is suitable for large-area farmland pesticide spraying and crop growth monitoring missions. The ultra-large capacity can support the UAV to complete the operation of hundreds of mu of farmland in a single flight, reducing the operation cost.
In large-scale topographic surveying, mineral resource exploration and other scenarios, the battery can provide stable power for UAVs carrying heavy surveying and mapping equipment, ensuring high-precision and continuous data collection.
For small and medium-sized UAV material transportation missions in mountainous areas and remote areas, the long endurance performance of the battery can reduce the number of take-off and landing times, and improve the efficiency of material transportation.
The product supports bulk order negotiation, and customers can submit procurement needs through the official channel. We provide personalized customization services for special UAV platforms, including size adjustment and voltage matching.
We provide free installation adaptation guidance to help customers complete the battery and UAV platform matching test. The product has a 18-month warranty period, and a professional after-sales team provides 7×24-hour technical support. We also support cross-border logistics services to meet the procurement needs of global customers.
