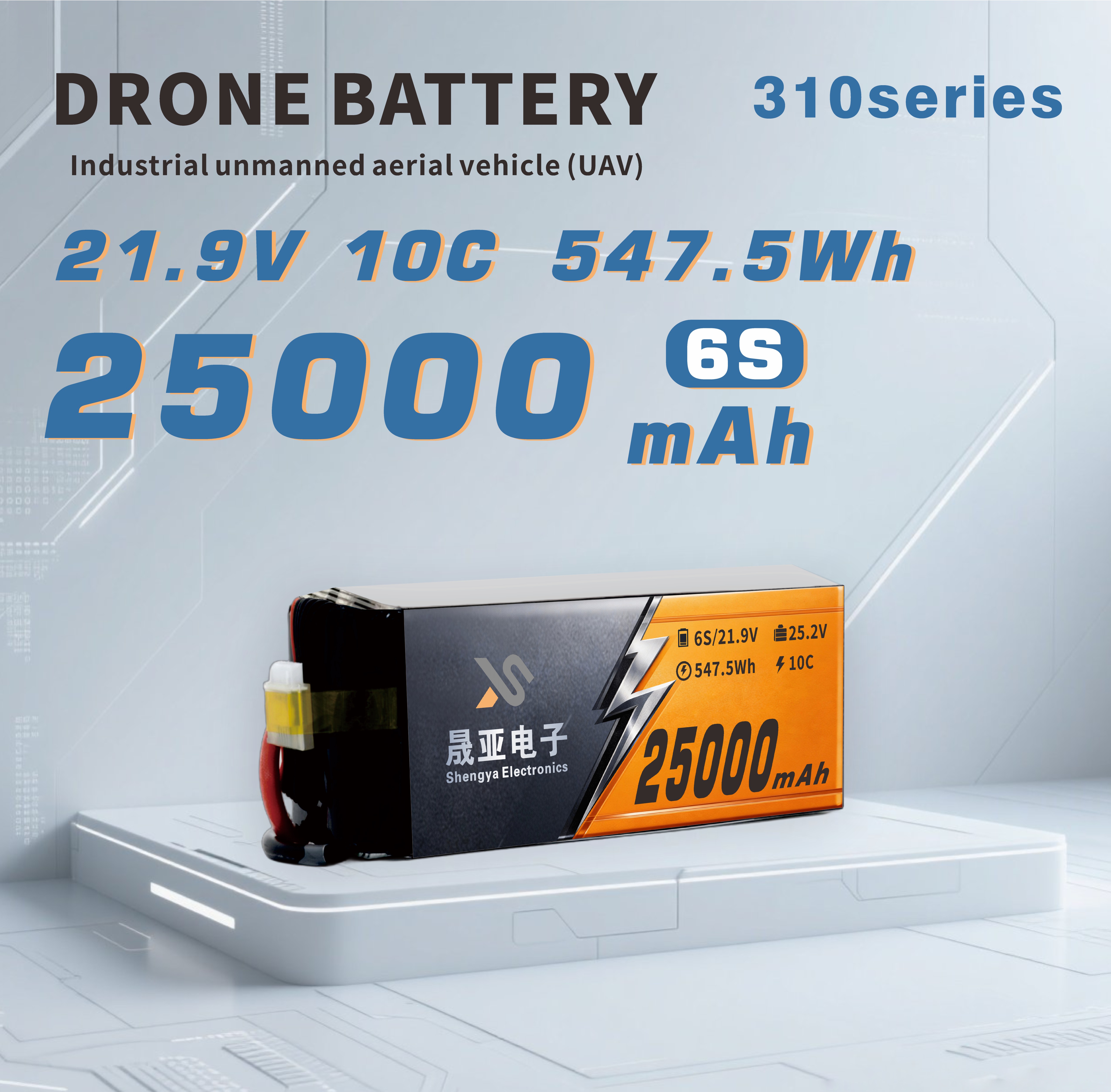

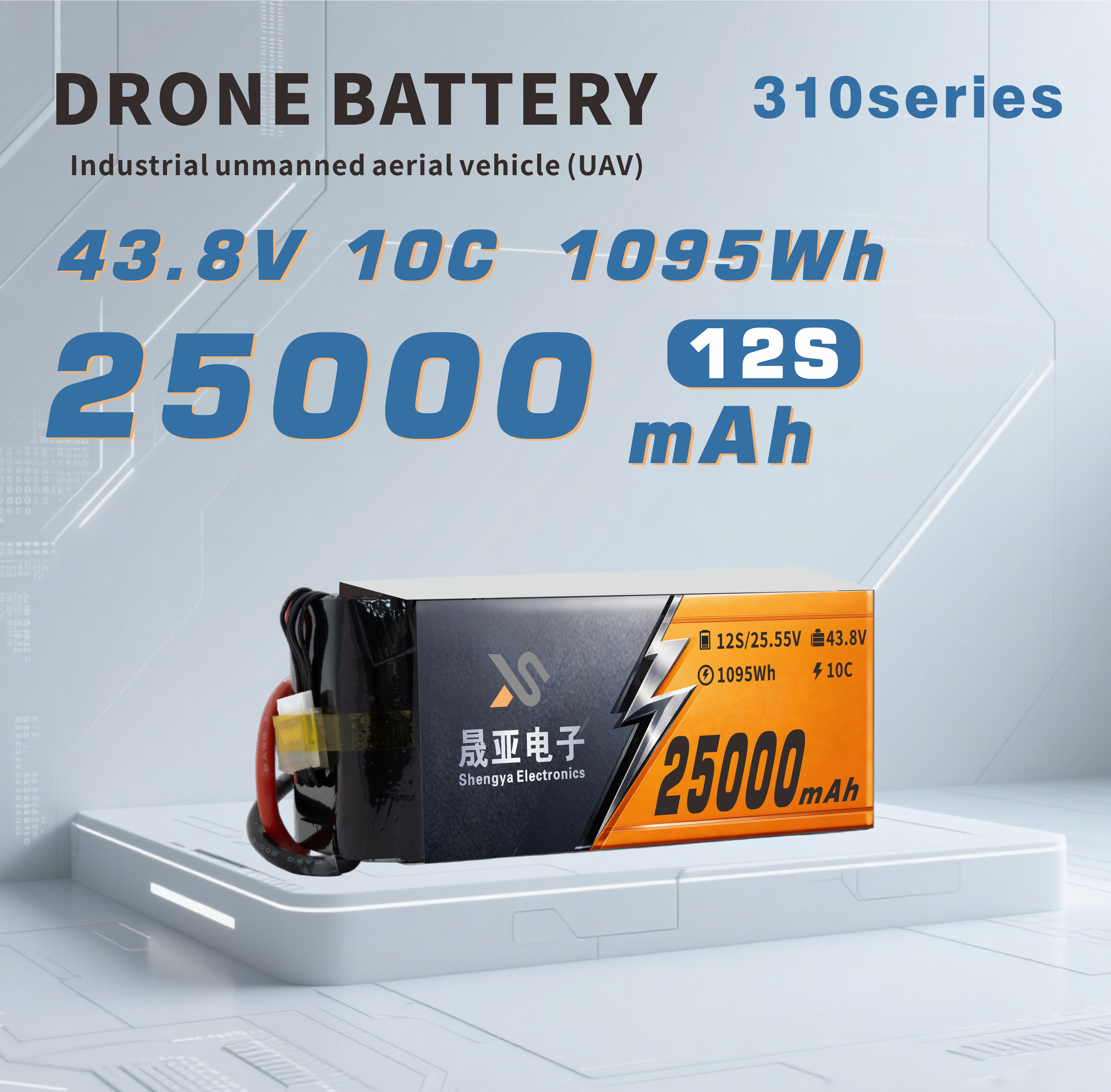

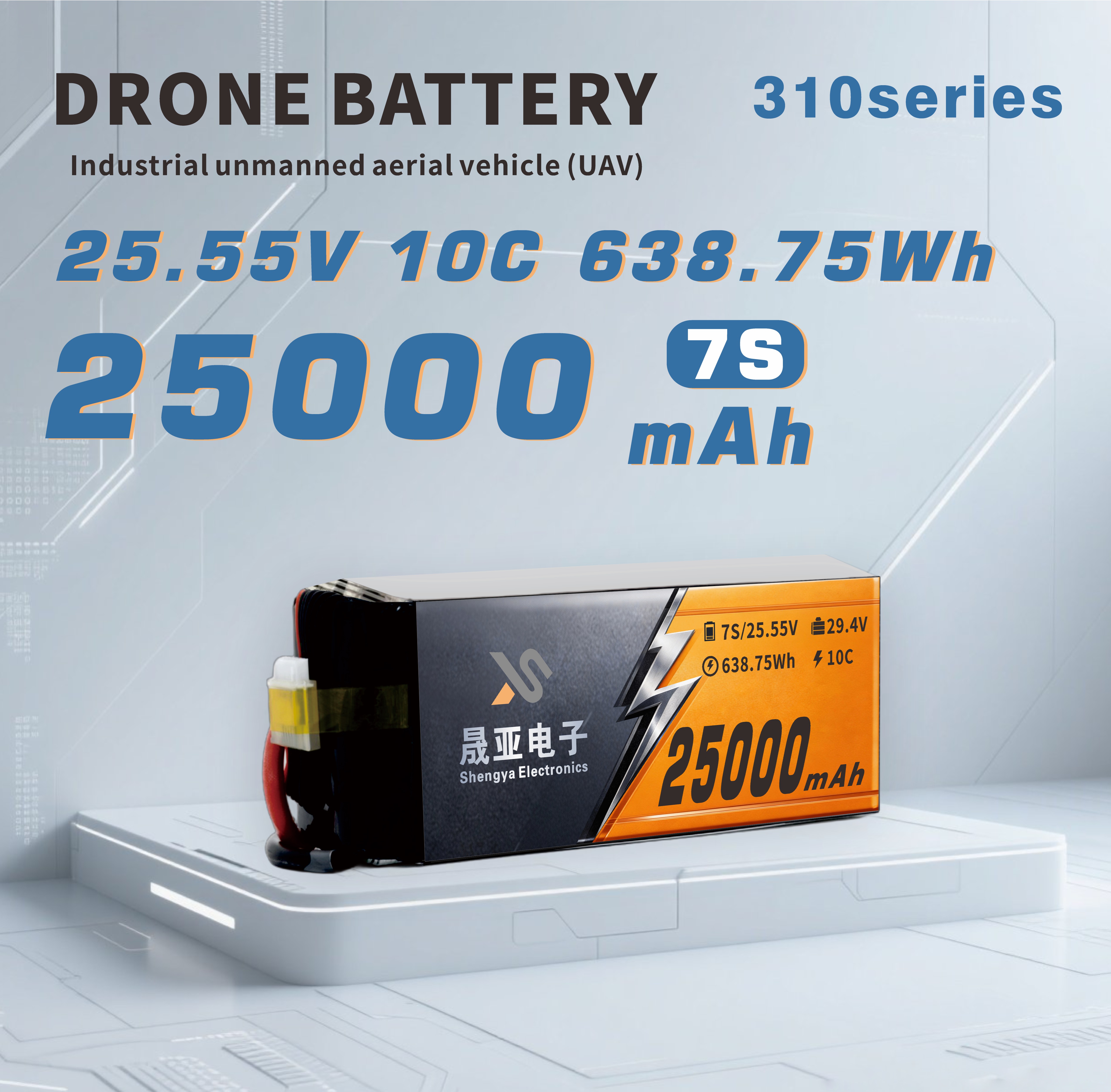

The 310 Series 25000mAh Industrial UAV Solid-State Li-ion Battery is a high-performance power solution tailored for industrial unmanned aerial vehicles. Available in 6S, 7S, and 12S configurations, this battery boasts a rated capacity of 25000mAh, delivering stable and long-lasting power to support UAV operations. Adopting advanced solid-state lithium-ion technology, it breaks through the limitations of traditional batteries, achieving a perfect balance between high energy density and lightweight design. Whether for long-duration aerial surveys or high-intensity industrial inspections, this battery can provide reliable power support, helping industrial UAVs fly higher and farther.

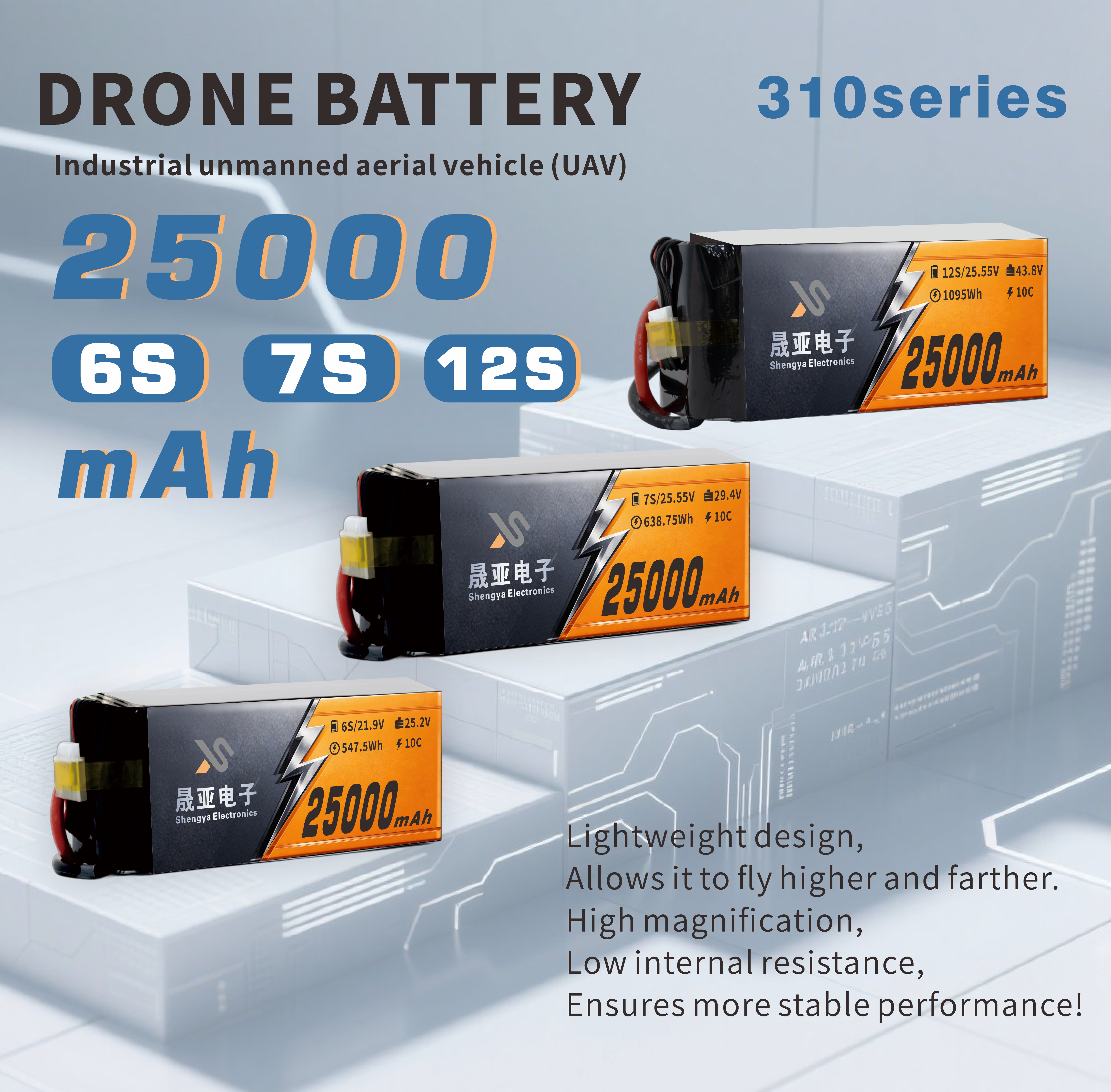

The battery features an optimized lightweight design, which effectively reduces the overall load of the UAV. This design allows industrial unmanned aerial vehicles to obtain longer flight time and wider operation range. Compared with batteries of the same capacity, it has a more compact structure, making it easier to install and match with various industrial UAV models.
Equipped with high-magnification electrode materials, the battery supports a 10C peak discharge rate and a 3C continuous discharge rate, meeting the high-power demand of industrial UAVs during take-off, climbing and high-speed flight. Its low internal resistance characteristic ensures minimal energy loss during power output, keeping the battery working temperature stable and avoiding performance degradation caused by excessive heat.
The battery has a strict charging control standard, with a maximum charging current of ≤2C (50A), which can greatly shorten the charging time while ensuring charging safety. The charging cut-off voltage is precisely set according to different configurations, effectively preventing overcharging and extending the cycle life of the battery.

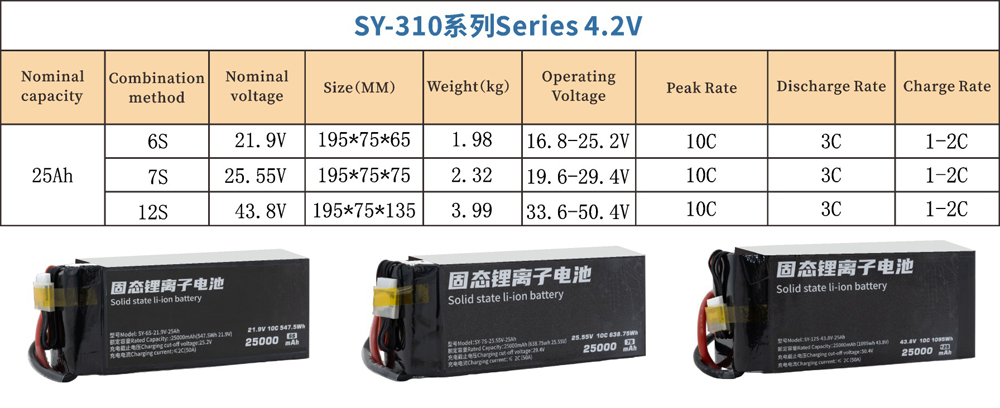

Nominal Capacity | Combination Method | Nominal Voltage | Size (MM) | Weight (kg) | Operating Voltage | Peak Rate | Discharge Rate | Charge Rate |
25Ah | 6S | 21.9V | 195×75×65 | 1.98 | 16.8-25.2V | 10C | 3C | 1-2C |
25Ah | 7S | 25.55V | 195×75×75 | 2.32 | 19.6-29.4V | 10C | 3C | 1-2C |
25Ah | 12S | 43.8V | 195×75×135 | 3.99 | 33.6-50.4V | 10C | 3C | 1-2C |
It is suitable for high-voltage power line inspection, oil and gas pipeline patrol and other scenarios. The 25000mAh high capacity ensures that the UAV can complete the inspection of long-distance lines in a single flight, reducing the number of battery replacements and improving operation efficiency.
In large farmland plant protection operations, the battery can support the UAV to carry sufficient pesticide loads and complete the spraying work of large-area farmland. Its stable discharge performance ensures the uniform speed of the UAV during flight, avoiding uneven pesticide spraying.
For aerial mapping and surveying projects, the battery provides long-time power support for the UAV's high-precision mapping equipment, ensuring that the equipment can collect complete and accurate geographical data in a single flight.
Customers can inquire about product details and quotation information through the official channel, and directly add the required battery models to the shopping cart for purchase. The product supports both single-piece purchase and bulk order, with preferential prices for large-quantity procurement.
The after-sales team provides professional technical guidance, including battery matching suggestions, use and maintenance tips. In case of product quality problems during the warranty period, customers can enjoy free maintenance or replacement services.
