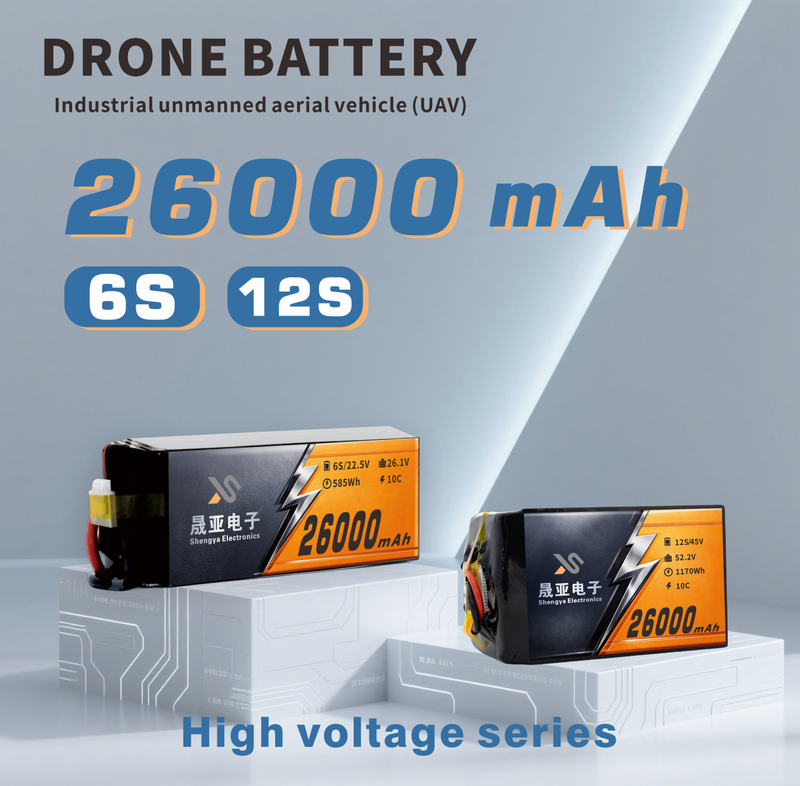

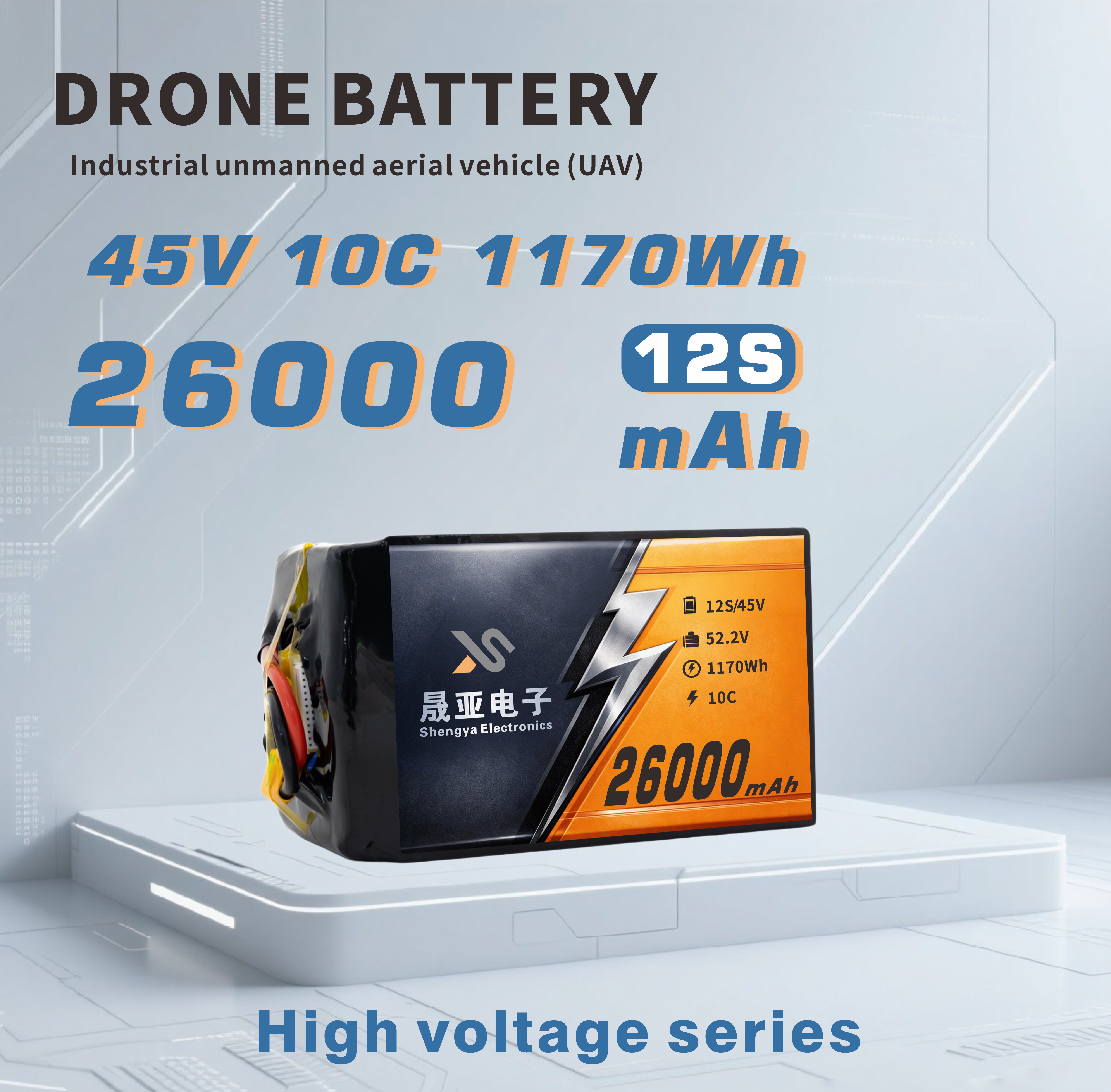

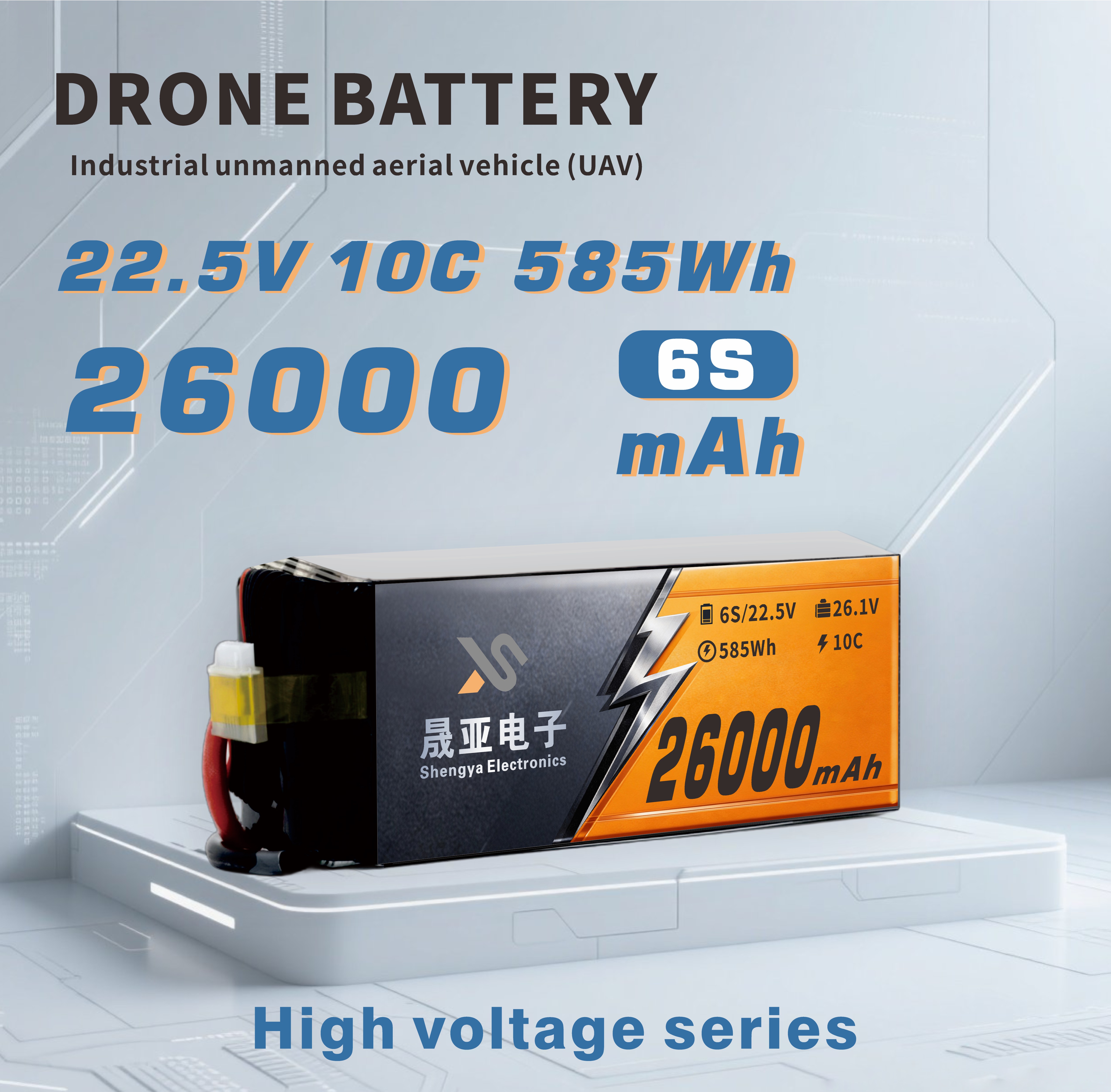

The SY-270 High Voltage Series 26000mAh Industrial UAV Solid State Li-ion Battery is a high-efficiency power product tailored for medium-load industrial unmanned aerial vehicles. Based on 4.35V high-voltage monomer technology, this solid state battery has two configurations of 6S and 12S, with nominal voltages of 22.5V and 45V, and rated energy of 585Wh and 1170Wh respectively. The nominal capacity of the battery is 26000mAh (26Ah), supporting a peak discharge rate of 10C and a continuous discharge rate of 5C, which can meet the power demand of UAVs for medium-load and long-distance flight tasks. The maximum charging current is ≤2C (52A), and the charging cut-off voltage is 26.1V (6S version) and 52.2V (12S version). This high-voltage solid state UAV battery focuses on the balance between energy density and lightweight, and is an ideal power choice for UAV scenarios such as precision agriculture and environmental monitoring.
Under the premise of ensuring power performance, the battery has achieved a breakthrough in energy density. The 6S version weighs only 2.33kg, and the 12S version weighs 4.62kg, which is lighter than products of the same capacity level. The compact size (6S: 210×88×60 mm; 12S: 210×88×119 mm) reduces the load of UAVs, effectively extending the single flight time.
The battery adopts a high-precision battery management system, which can realize intelligent control of charging and discharging processes. The charging rate of 1-2C can shorten the charging interval, and the stable 5C continuous discharge rate ensures that the UAV maintains consistent power output during flight, avoiding power attenuation caused by load changes.
The solid state electrolyte structure of the battery effectively improves the environmental adaptability. It can operate stably in the temperature range of -20°C to 60°C, and is not prone to safety risks such as short circuit and thermal runaway in harsh environments such as high humidity and dust, which improves the operation reliability of UAVs.

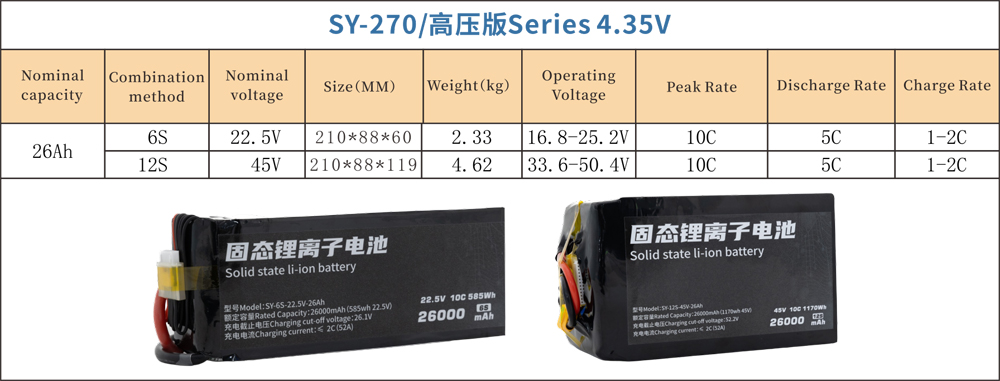

Parameter | 6S Configuration | 12S Configuration |
Nominal Capacity | 26000mAh (26Ah) | 26000mAh (26Ah) |
Combination Method | 6S | 12S |
Nominal Voltage | 22.5V | 45V |
Size (mm) | 210×88×60 | 210×88×119 |
Weight (kg) | 2.33 | 4.62 |
Operating Voltage | 16.8-25.2V | 33.6-50.4V |
Peak Rate | 10C | 10C |
Discharge Rate | 5C | 5C |
Charge Rate | 1-2C | 1-2C |
Charging Cut-off Voltage | 26.1V | 52.2V |
This battery is suitable for small and medium-sized agricultural plant protection UAVs, which can support UAVs to complete pesticide spraying and crop growth monitoring tasks in small and medium-sized farmland. The lightweight design reduces the pressure of UAVs during low-altitude flight, and the stable power output ensures the uniformity of spraying.
For UAVs engaged in air quality detection, water quality monitoring and meteorological data collection, the battery's long-term stable discharge performance can support UAVs to complete long-distance cruise tasks, and the high safety performance can adapt to the complex environmental conditions of monitoring sites.
In urban scenarios such as pipeline inspection and building exterior wall detection, the compact size of the battery can make UAVs more flexible in flight, and the high-voltage design can ensure that UAVs maintain stable power when carrying small detection equipment.
Customers can place orders through the official website inquiry channel or directly add the product to the shopping cart. The minimum order quantity is 1 unit, and we provide preferential policies for bulk procurement customers to reduce the procurement cost of enterprises.
According to the special needs of customers, our R&D team can provide customized services such as battery connector customization, capacity adjustment and size optimization, to ensure that the battery can be perfectly matched with the customer's UAV model.
We provide a one-year warranty service for the product. During the warranty period, if there are non-human quality problems, we will provide free replacement or maintenance. We also provide long-term technical consulting services to help customers solve problems such as battery maintenance and use.
