The 275 Series UAV Battery is a multi-configuration solid state li-ion battery product tailored for industrial unmanned aerial vehicles. It has a rated capacity of 22000mAh and provides four combinations: 6S, 7S, 12S, and 14S, with nominal voltages ranging from 22.2V to 51.8V and energy up to 1139.6Wh. This series combines lightweight design and high-rate discharge performance, breaking through the limitations of traditional UAV batteries in terms of endurance and adaptability. It is suitable for various industrial UAVs with different load requirements. The 275 Series includes both solid state high-performance versions and standard LiPo versions, meeting the diverse procurement needs of customers. Its low internal resistance design ensures stable power output, allowing UAVs to fly higher and farther in complex environments.

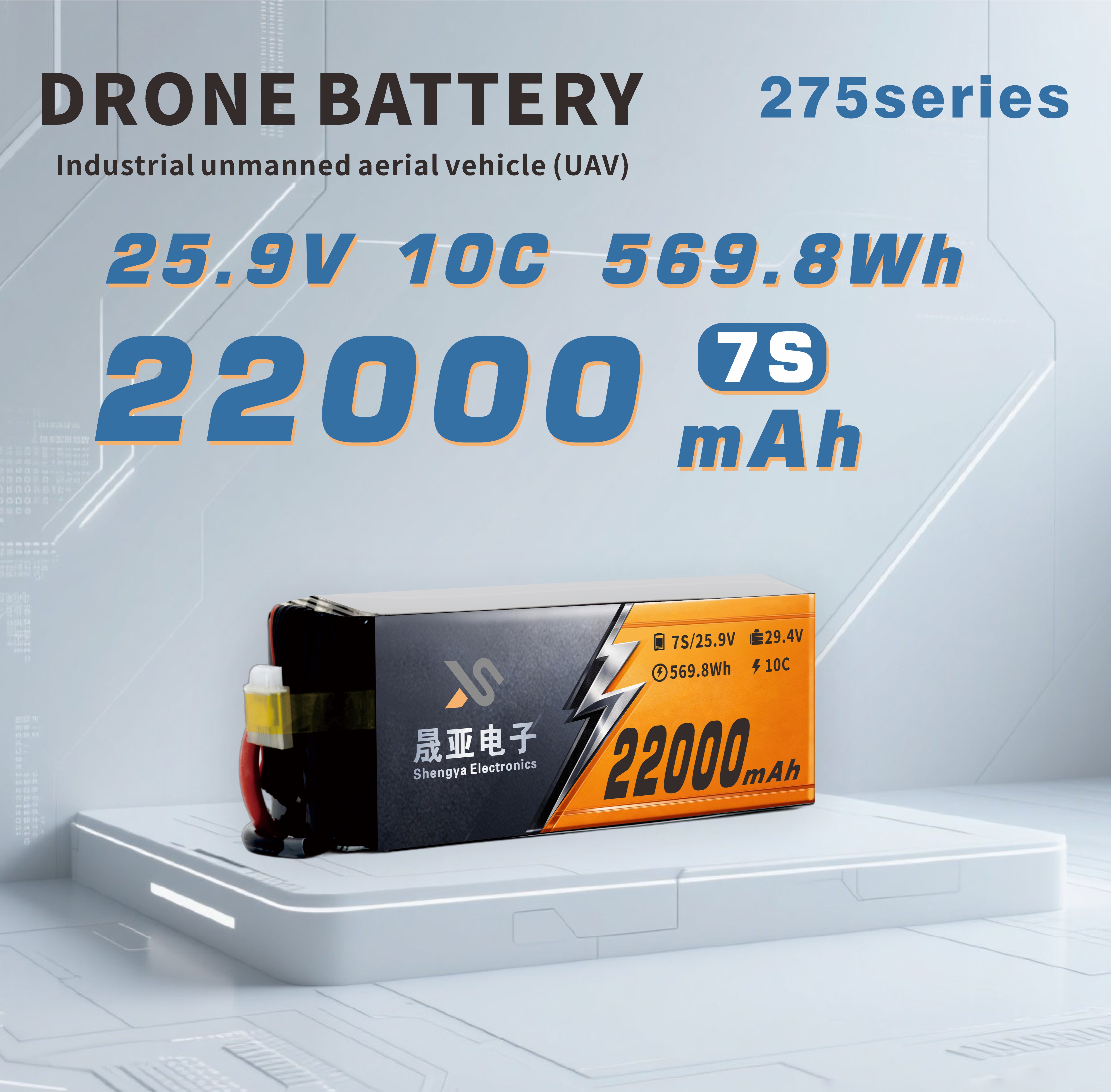

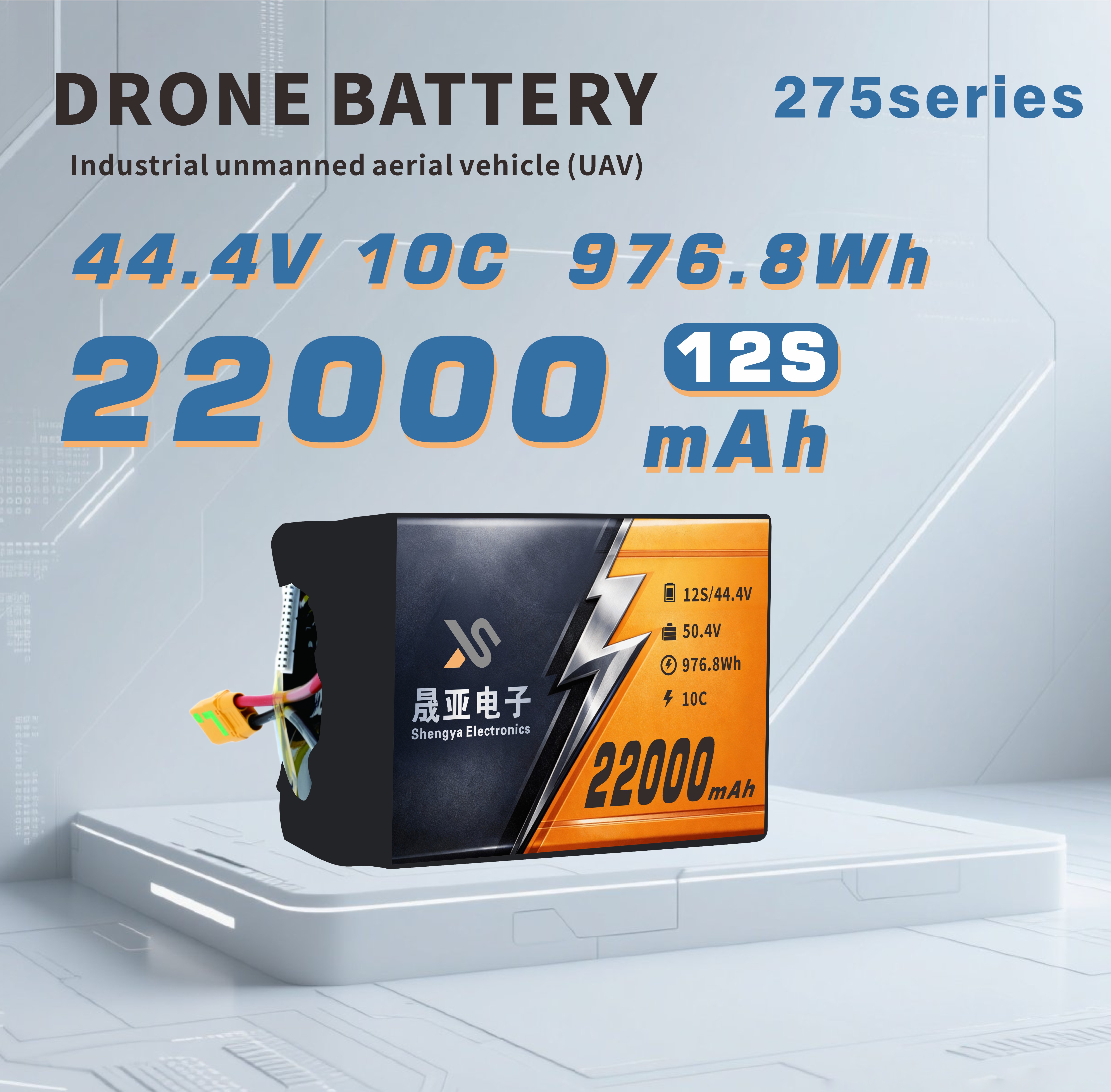

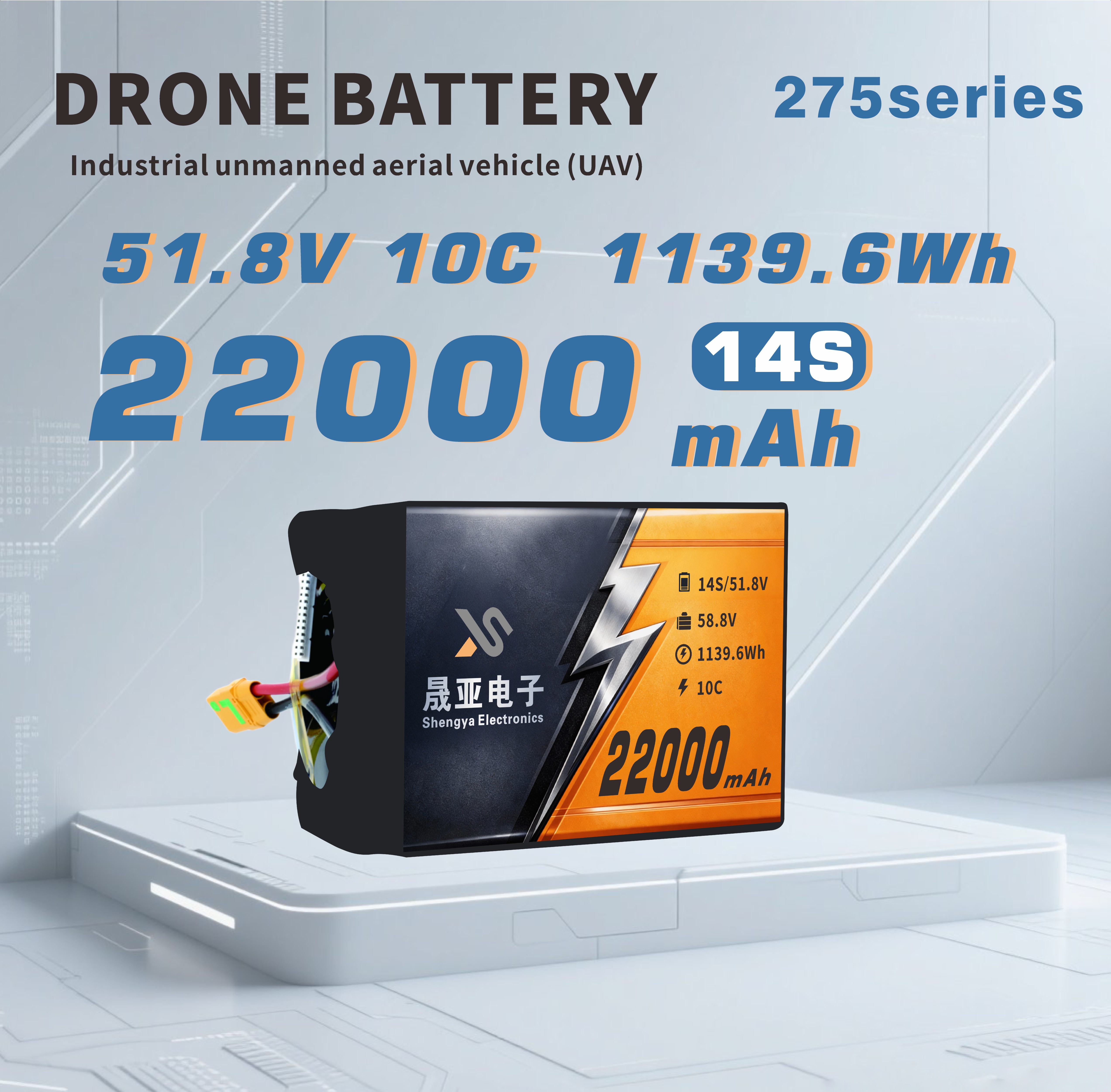

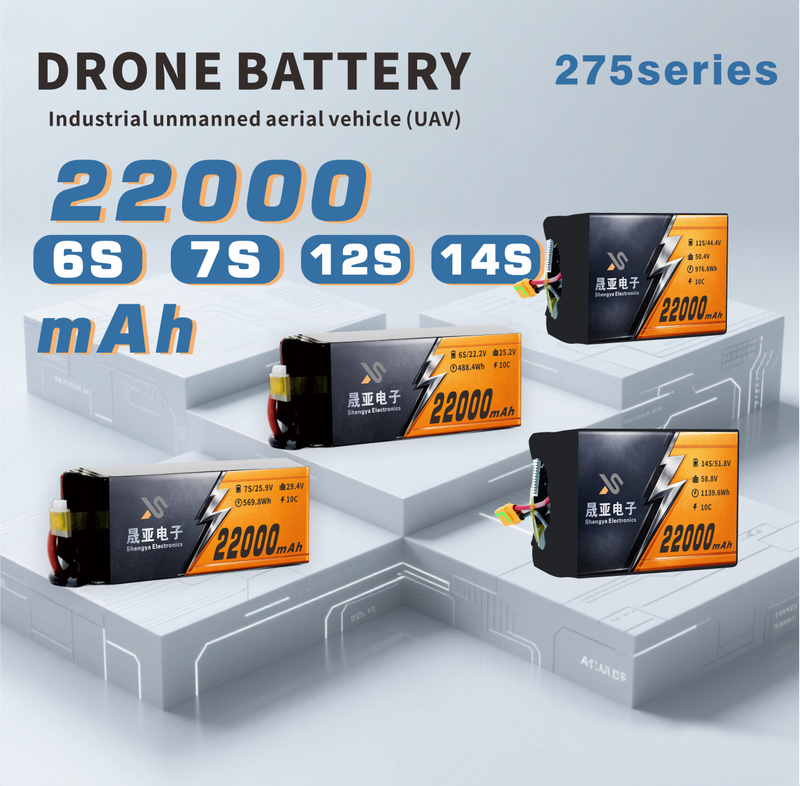

The battery has four combinations: 6S, 7S, 12S, and 14S. It can be flexibly matched with different types of industrial UAVs, from small aerial survey UAVs to large heavy-load patrol UAVs. The rich voltage and energy options provide customers with more targeted solutions.

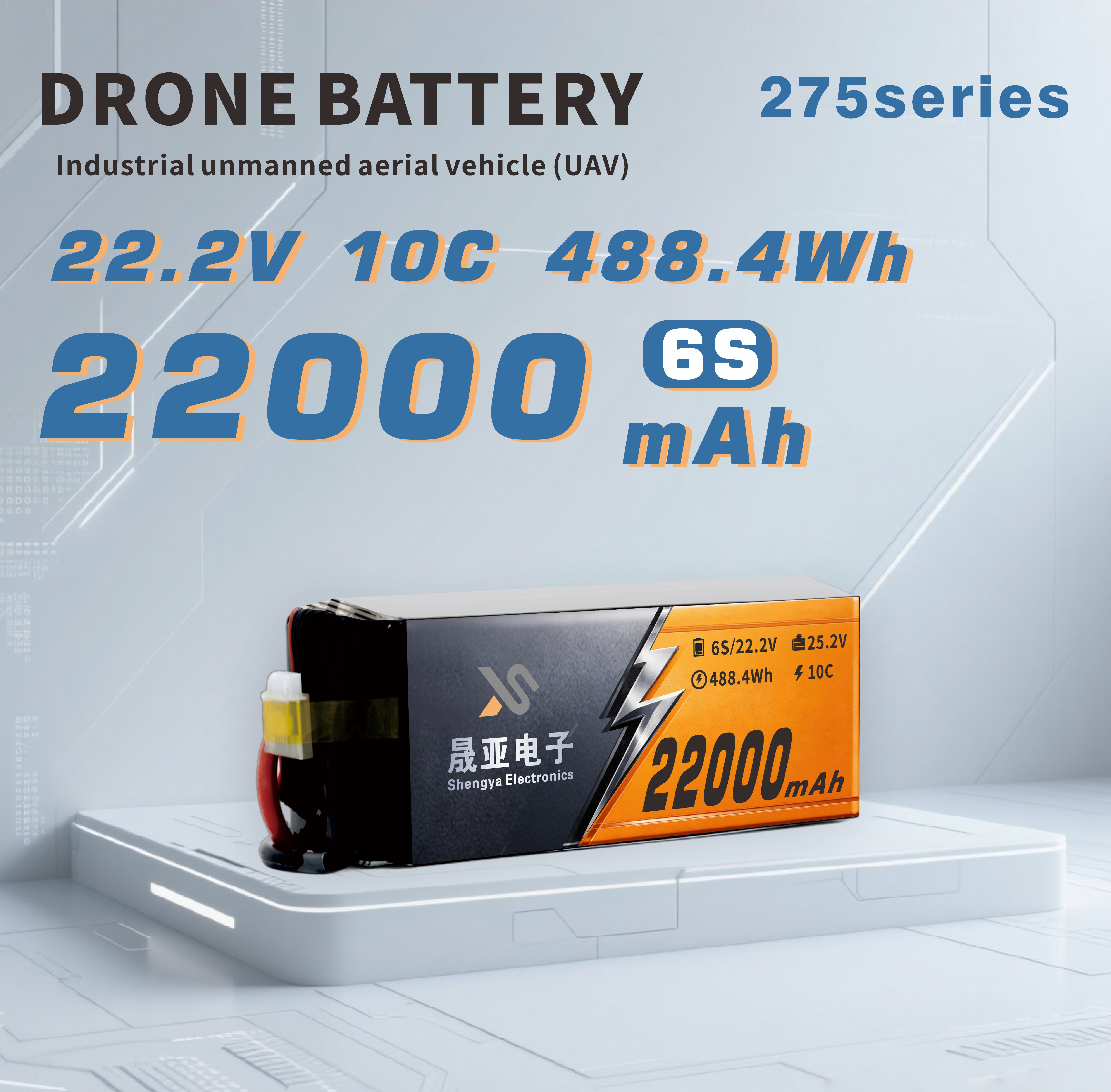

Adopting an optimized structural design, the 6S version weighs only 1.94kg with a size of 195×75×65MM. It effectively reduces the flight load of UAVs and improves the flight endurance and maneuverability. The high energy density ensures that the battery can provide long-lasting power without increasing the volume.
The low internal resistance design of the battery reduces energy loss during discharge. It ensures that the UAV maintains stable performance during long-time flights and high-load operations. The peak discharge rate of 10C can meet the instantaneous high-power demand of UAVs during takeoff and emergency maneuvers.

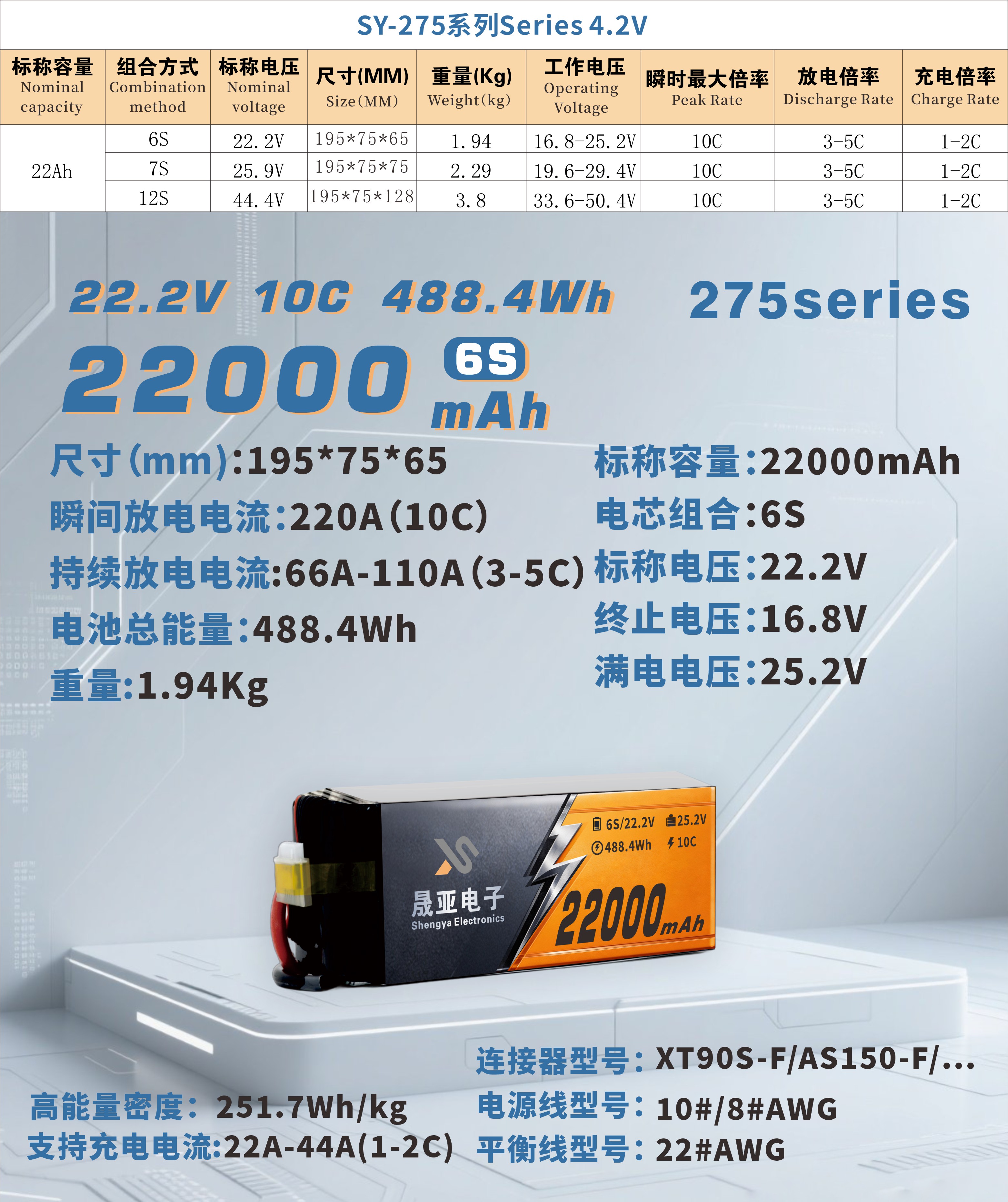

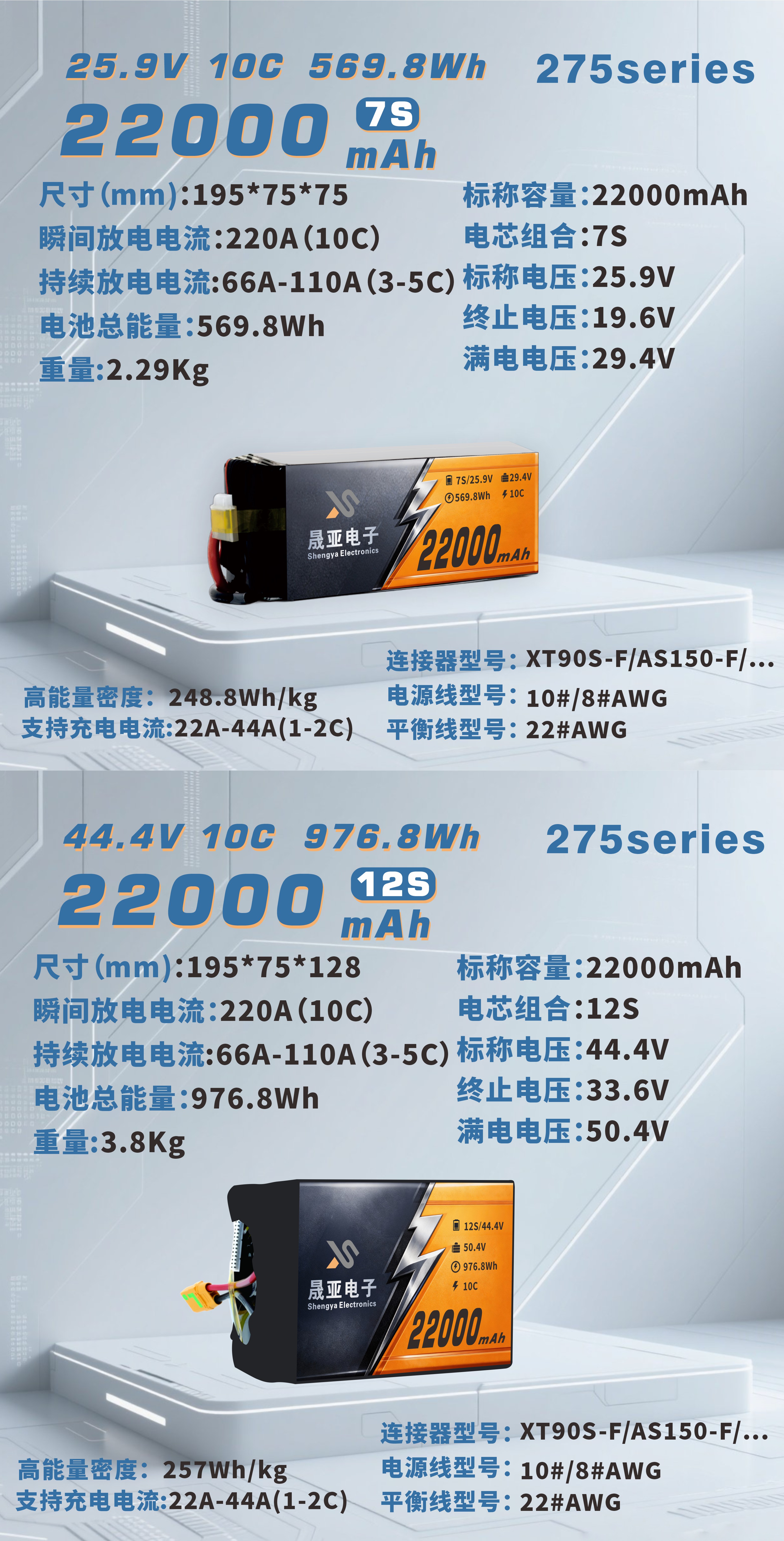

Parameter | 6S Configuration | 7S Configuration | 12S Configuration |
Nominal Capacity | 22000mAh (22Ah) | 22000mAh (22Ah) | 22000mAh (22Ah) |
Nominal Voltage | 22.2V | 25.9V | 44.4V |
Energy | 488.4Wh | 569.8Wh | 976.8Wh |
Size (MM) | 195×75×65 | 195×75×75 | 195×75×128 |
Weight (kg) | 1.94 | 2.29 | 3.8 |
Operating Voltage Range | 16.8-25.2V | 19.6-29.4V | 33.6-50.4V |
Peak Discharge Rate | 10C | 10C | 10C |
Continuous Discharge Rate | 3-5C | 3-5C | 3-5C |
Charging Rate | 1-2C | 1-2C | 1-2C |
Charging Cut-off Voltage | 25.2V | 29.4V | 50.4V |
Maximum Charging Current | ≤44A | ≤44A | ≤44A |
The 275 Series battery has strong adaptability and stable performance. It can support UAVs to carry out search and rescue tasks in harsh environments such as mountainous areas and disaster-stricken areas. The long endurance ensures that UAVs can cover a large search range in a single flight.
UAVs equipped with this battery can carry environmental monitoring sensors to conduct long-term monitoring of air quality, water quality, and vegetation coverage. The stable power output ensures the accuracy of monitoring data.
In urban scenarios, the battery provides sufficient power for UAVs to carry out real-time patrols of key areas. It helps to maintain public security and monitor traffic conditions, improving the efficiency of urban management.
Customers can browse product details on the official website and submit procurement inquiries online. Our sales team will reply to the quotation and inventory information within 24 hours. We support customized procurement services to adjust battery parameters according to the special needs of customers' UAVs.
We provide one-stop technical support, including battery matching guidance, installation debugging, and use training. The product has a reliable quality assurance system. During the warranty period, we provide free maintenance and replacement services for quality problems. Our after-sales team has a fast response mechanism, ensuring that customers' problems are solved in the shortest time.
