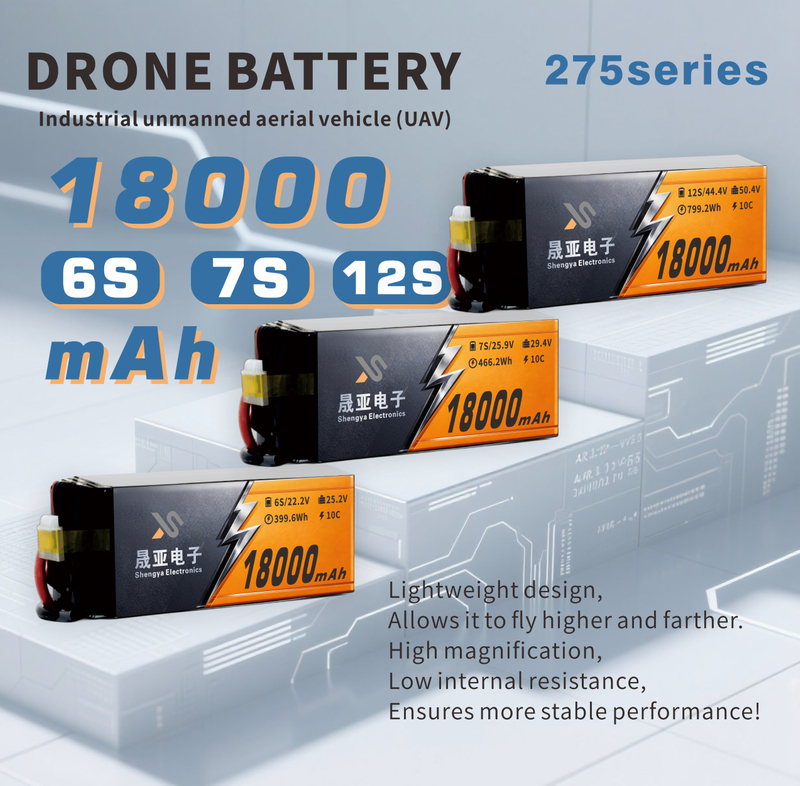

The 275 Series 18000mAh UAV Solid State Li-ion Battery is a high-performance power solution designed exclusively for industrial unmanned aerial vehicles (UAVs). Available in 6S, 7S, and 12S configurations, this battery delivers stable and efficient power support for various industrial drone operations. Adopting advanced solid state li-ion technology, it combines a nominal capacity of 18000mAh with a 10C high discharge rate and low internal resistance, ensuring reliable power output. Its lightweight design not only reduces the overall load of UAVs but also extends the flight range and altitude, making it an ideal choice for demanding industrial flight tasks. With strict compliance with charging and discharging specifications, this battery balances high performance and operational safety, meeting the rigorous requirements of industrial UAV applications.
The battery features a streamlined lightweight design, which effectively lowers the UAV’s payload burden. This advantage allows industrial drones to fly higher and farther, enhancing the efficiency of long-duration missions such as large-area inspections and surveys.
Equipped with a 10C peak discharge rate, the battery can provide instant high current to support the UAV’s high-intensity flight operations. Its low internal resistance minimizes energy loss during discharge, ensuring stable voltage output and consistent UAV performance even under heavy loads.
The battery sets clear charging cut-off voltages and current limits for different configurations, with a maximum charging current of ≤2C (36A). This standardized charging design prevents overcharging and overheating, significantly improving the battery’s service life and operational safety.

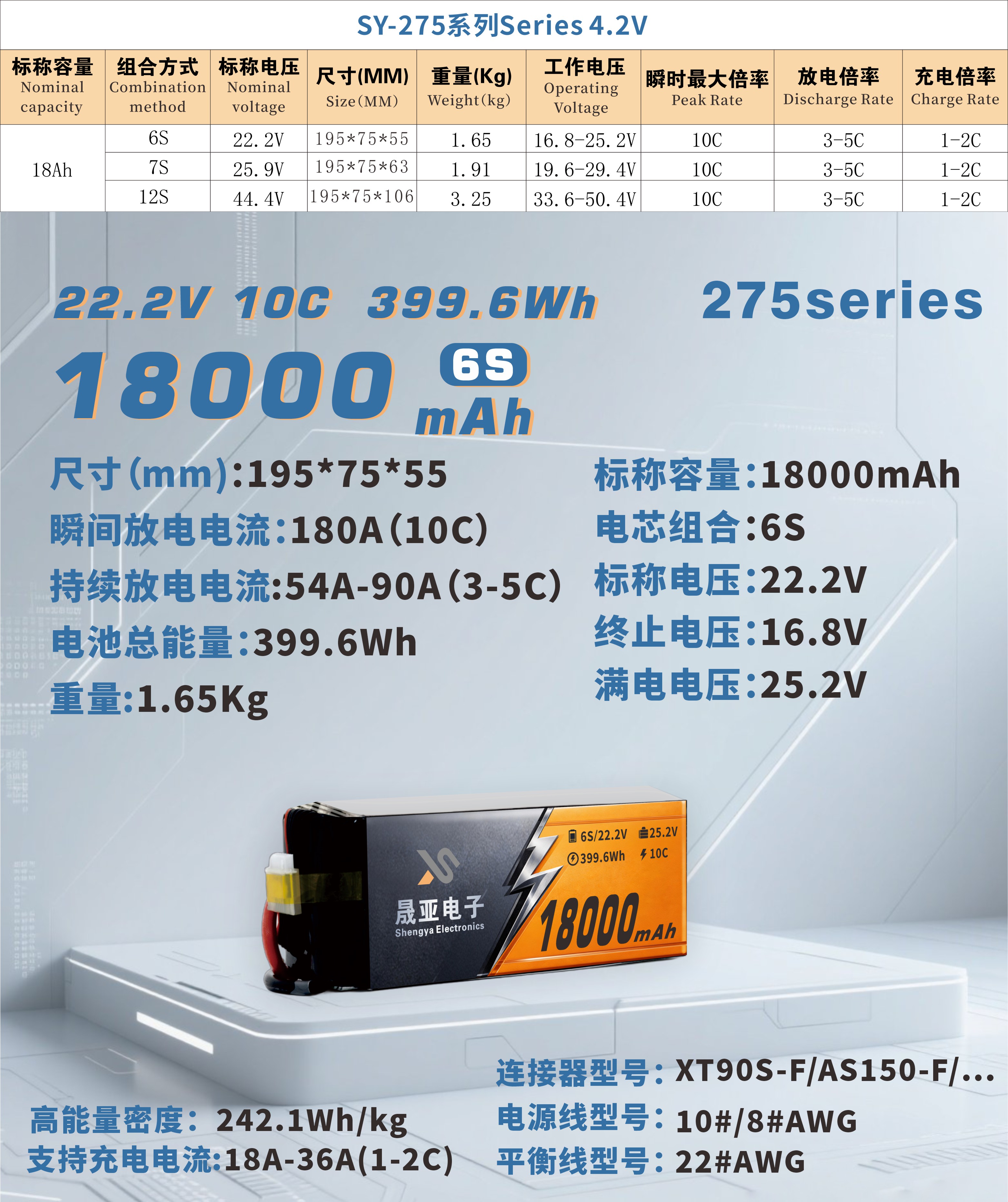

Nominal Capacity | Combination Method | Nominal Voltage | Size (MM) | Weight (kg) | Operating Voltage | Peak Rate | Discharge Rate | Charge Rate | Charging Cut-off Voltage |

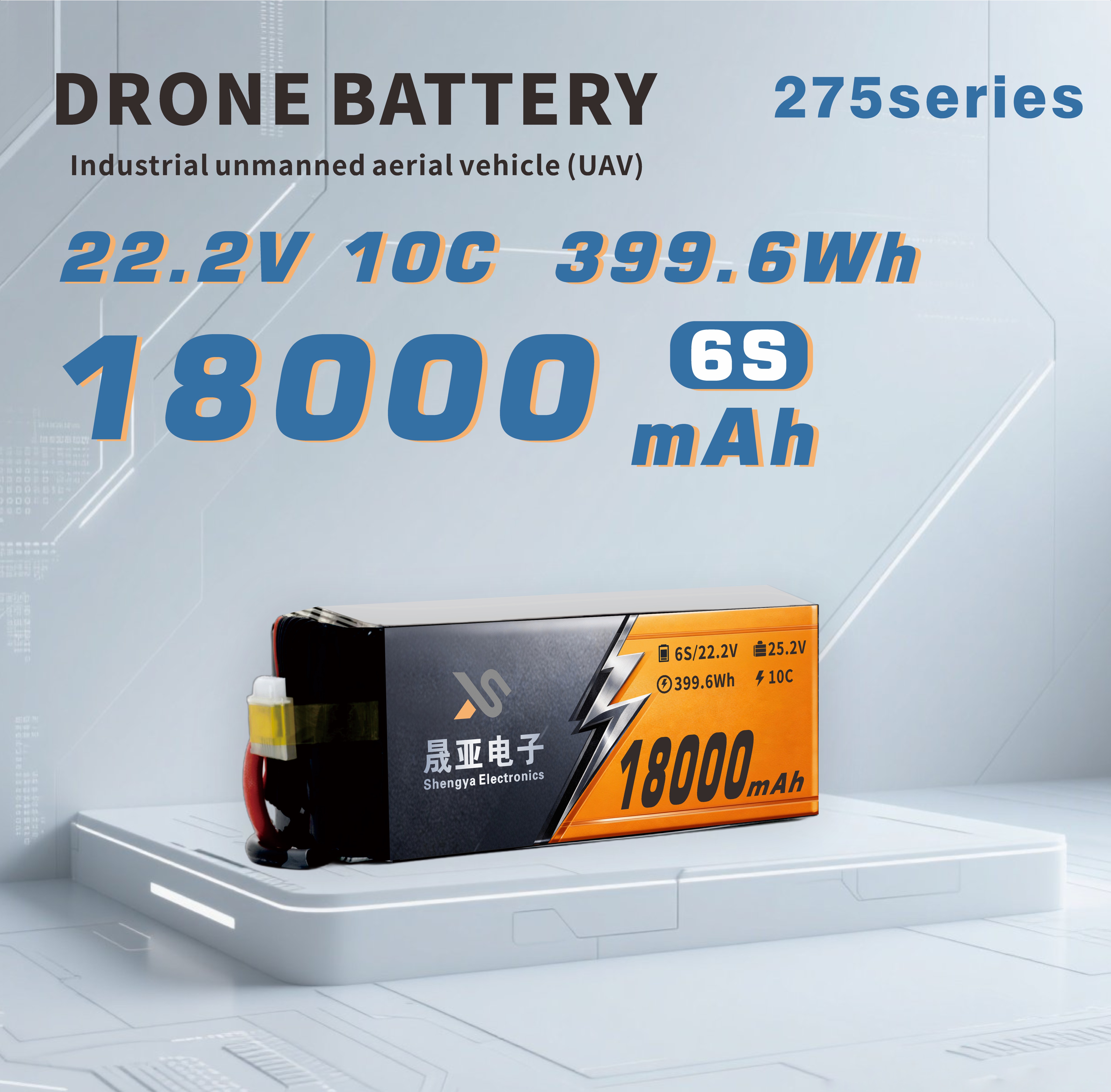

18000mAh | 6S | 22.2V | 195×75×55 | 1.65 | 16.8-25.2V | 10C | 3-5C | 1-2C | 25.2V |

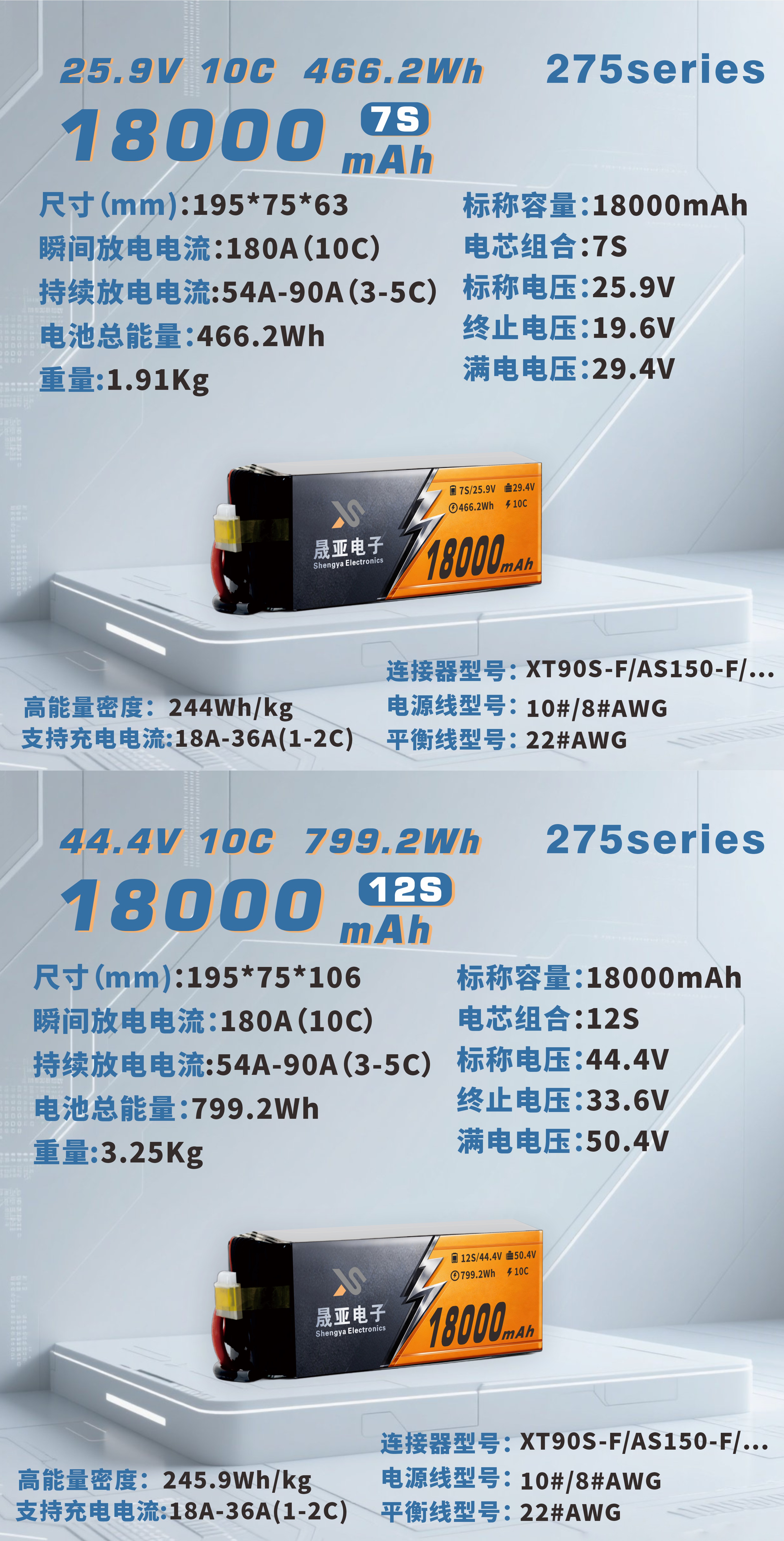

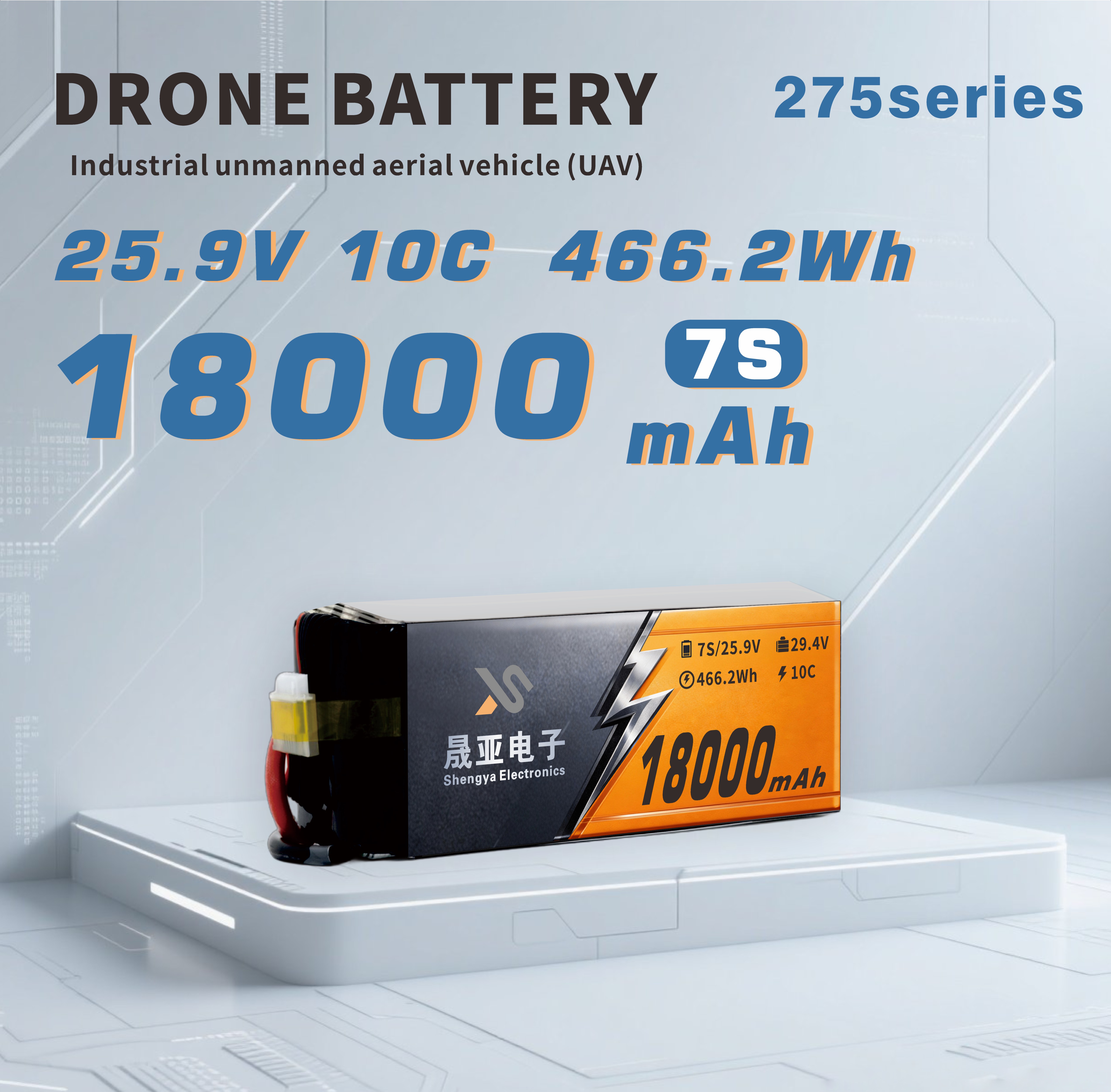

18000mAh | 7S | 25.9V | 195×75×63 | 1.91 | 19.6-29.4V | 10C | 3-5C | 1-2C | 29.4V |
18000mAh | 12S | 44.4V | 195×75×106 | 3.25 | 33.6-50.4V | 10C | 3-5C | 1-2C | 50.4V |
It is suitable for inspecting large-scale industrial facilities such as power transmission towers, wind turbines, and oil pipelines. The battery’s long flight time and stable performance allow drones to complete comprehensive inspections without frequent battery replacements.
For agricultural plant protection tasks, the battery supports drones to cover large farmland areas, spraying pesticides and fertilizers evenly. Its high discharge rate ensures the drone can operate stably even when carrying heavy pesticide tanks.
In geographic mapping and land surveying projects, the battery’s extended flight range helps drones collect high-precision geographic data over vast areas, improving the efficiency and accuracy of surveying work.
Interested buyers can initiate an inquiry through our official website. Our sales team will respond within 24 hours to provide detailed product quotes and technical consultation. After order confirmation, we will arrange fast delivery to ensure timely receipt of the products.
We offer a one-year warranty for the 275 Series 18000mAh battery. Our professional technical team provides 24/7 online support to solve any problems encountered during use. We also offer battery maintenance guidance to help users extend the battery’s service life.
