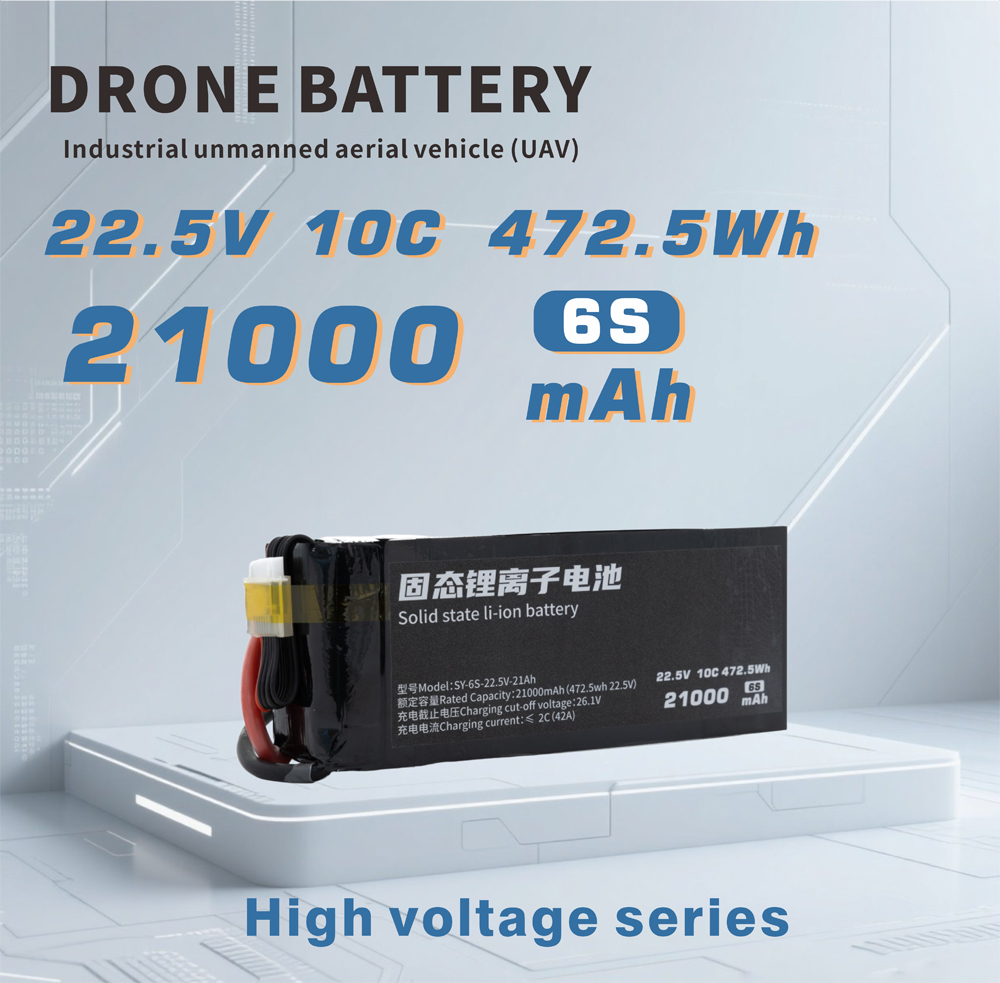

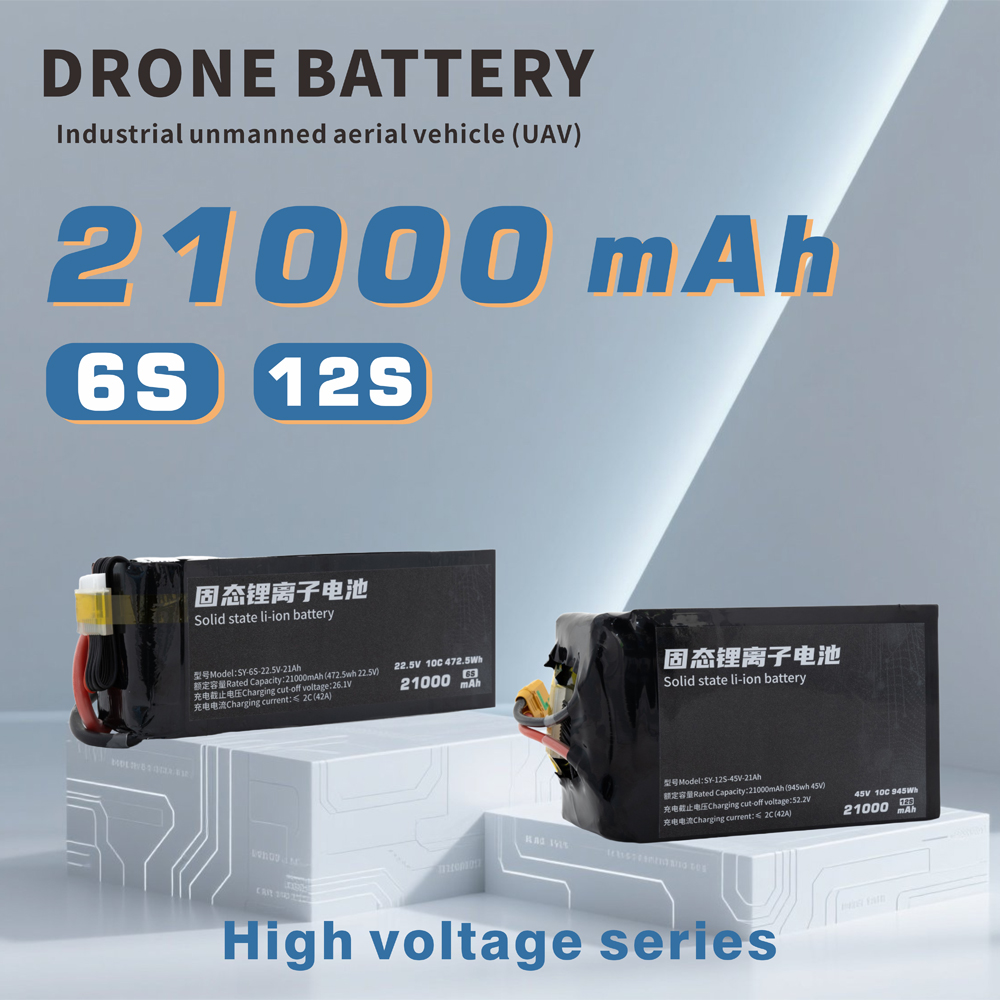

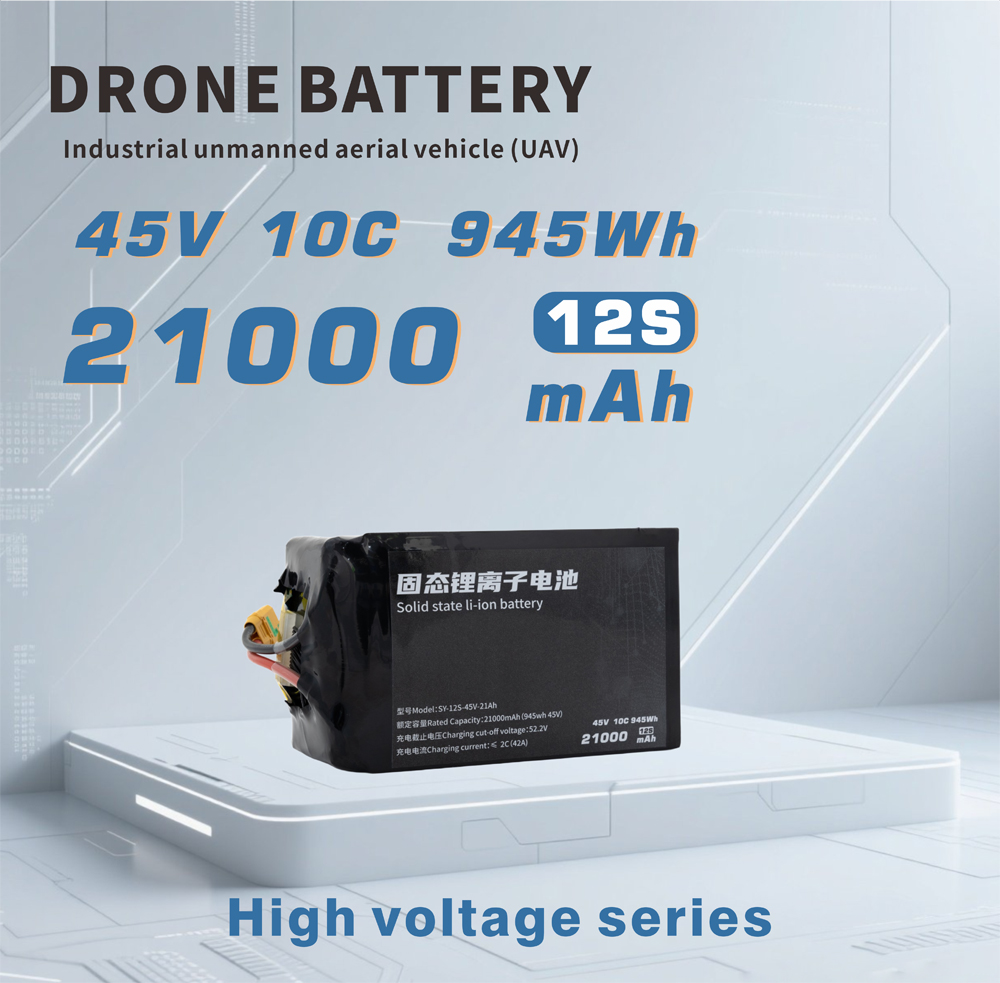

The 270 Series High Voltage UAV Battery is a high-performance solid state li-ion battery specially designed for industrial unmanned aerial vehicles. It comes in two configurations, 6S and 12S, with a standard rated capacity of 21000mAh. This battery series focuses on high voltage output and stable discharge performance, perfectly meeting the power needs of industrial UAVs for long-endurance flights and high-load operations. The 6S version has a nominal voltage of 22.5V and energy of 472.5Wh, while the 12S version reaches 45V and 945Wh. Both versions adopt a high-voltage design to improve energy transmission efficiency and reduce power loss during flight. With a peak discharge rate of 10C and a continuous discharge rate of 5C, it can provide strong power support for UAVs in complex working environments such as aerial surveying and mapping, power patrols, and agricultural plant protection.
The battery uses solid state li-ion battery technology, which has higher energy density than traditional lithium batteries. It ensures a smaller size and lighter weight under the same capacity, effectively reducing the load of UAVs and improving flight endurance. The solid state structure also enhances the battery's safety, avoiding risks such as leakage and thermal runaway.
It supports a peak discharge rate of 10C and a maximum charging current of 2C (42A). This allows the UAV to quickly obtain strong power during takeoff and heavy-load operations. Fast charging shortens the battery's downtime and improves the overall work efficiency of the UAV.
The 6S version has an operating voltage range of 16.8-25.2V, and the 12S version has a range of 33.6-50.4V. The stable voltage output ensures that the UAV maintains consistent flight performance in different working states. It avoids voltage fluctuations affecting the accuracy of the UAV's on-board equipment.

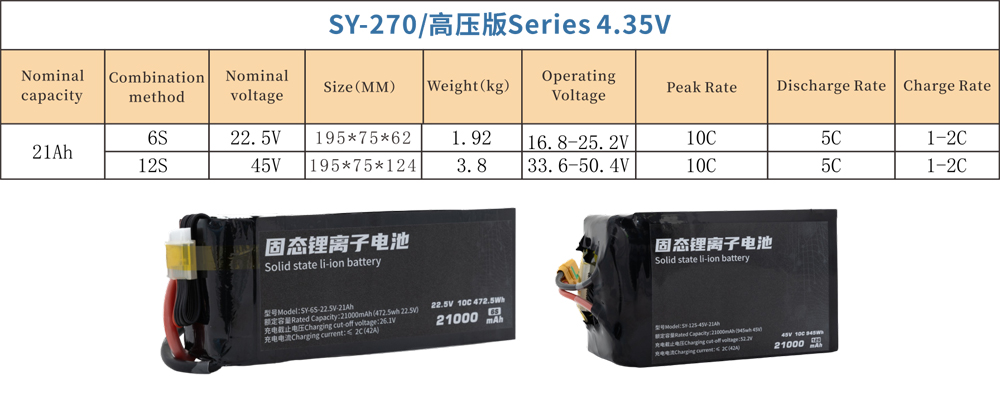

Parameter | 6S Configuration | 12S Configuration |
Nominal Capacity | 21000mAh (21Ah) | 21000mAh (21Ah) |
Nominal Voltage | 22.5V | 45V |
Size (MM) | 195×75×62 | 195×75×124 |
Weight (kg) | 1.92 | 3.8 |
Operating Voltage Range | 16.8-25.2V | 33.6-50.4V |
Peak Discharge Rate | 10C | 10C |
Continuous Discharge Rate | 5C | 5C |
Charging Rate | 1-2C | 1-2C |
The stable power output and high endurance of the 270 Series battery can support UAVs to complete large-area aerial surveying tasks. It is suitable for topographic mapping, land resource survey, and urban planning survey.
Industrial UAVs equipped with this battery can fly along power lines or oil and gas pipelines for a long time. They can conduct high-precision inspections of equipment and identify potential safety hazards in a timely manner.
In agricultural scenarios, the battery provides sufficient power for UAVs to carry pesticide spraying equipment. It can cover large farmland areas efficiently, realizing precise and environmentally friendly plant protection operations.
Customers can directly inquire about product details through the official website or contact the sales team to confirm inventory and quotation. We support small and large batch procurement, and provide flexible delivery solutions according to customer needs.
We provide a comprehensive after-sales service system, including battery performance testing, maintenance guidance, and technical consultation. The product has a strict quality assurance period. If there are non-human quality problems during the period, we will provide replacement and repair services in a timely manner. Professional technical personnel are on call 24/7 to solve customers' problems in the process of using the battery.
