Hardware failures involving lithium-based power sources carry high product liability, compliance, and user safety risks. A simple malfunction can lead to catastrophic fires, costly recalls, and severely damaged brand reputation. Hardware engineers and product managers face a constant dilemma. They must balance strict form factor and high-performance requirements against the physical vulnerabilities of different battery chemistries. You cannot simply choose the smallest or cheapest power source without considering the structural risks.
Neither chemistry is inherently "safe" without proper engineering. True safety depends on understanding the specific failure modes of lithium-ion versus lithium-polymer architectures. We must mitigate these vulnerabilities through careful structural design and advanced control systems. In this article, you will learn how mechanical construction dictates failure profiles. We will explore thermal and physical hazard evaluations for both types. Finally, you will discover how to implement robust battery management strategies to ensure absolute product safety.
Li-ion batteries rely on rigid metal casings that provide superior mechanical protection but can build up internal pressure.
LiPo battery cells utilize flexible polymer pouches that safely expand (swell) during outgassing but are highly vulnerable to physical puncture.
A robust Battery Management System (BMS) is the primary driver of safety for both chemistries, superseding base chemistry in preventing thermal runaway.
Final selection should be dictated by the device's operational environment, mechanical enclosure constraints, and shipping compliance requirements (e.g., UN38.3).
To evaluate safety effectively, we must first examine the physical construction of these power sources. The mechanical housing dictates how a cell handles stress, pressure, and impact. A fundamental trade-off exists between structural rigidity and failure management.
Traditional lithium-ion units typically feature a standard cylindrical or prismatic metal casing. You will commonly see form factors like the 18650 or 21700 cell used in laptops, power tools, and electric vehicles. Manufacturers build these casings from rigid steel or aluminum. This hard shell easily resists external crush impacts and everyday drops. However, this same rigidity creates a contained pressure vessel. When internal temperatures rise, the liquid electrolyte vaporizes into gas. The rigid shell traps this gas, causing immense internal pressure. To prevent the cylinder from behaving like a localized explosive, engineers design microscopic burst valves into the top cap. These valves selectively rupture to release dangerous internal pressure before a catastrophic structural failure occurs.

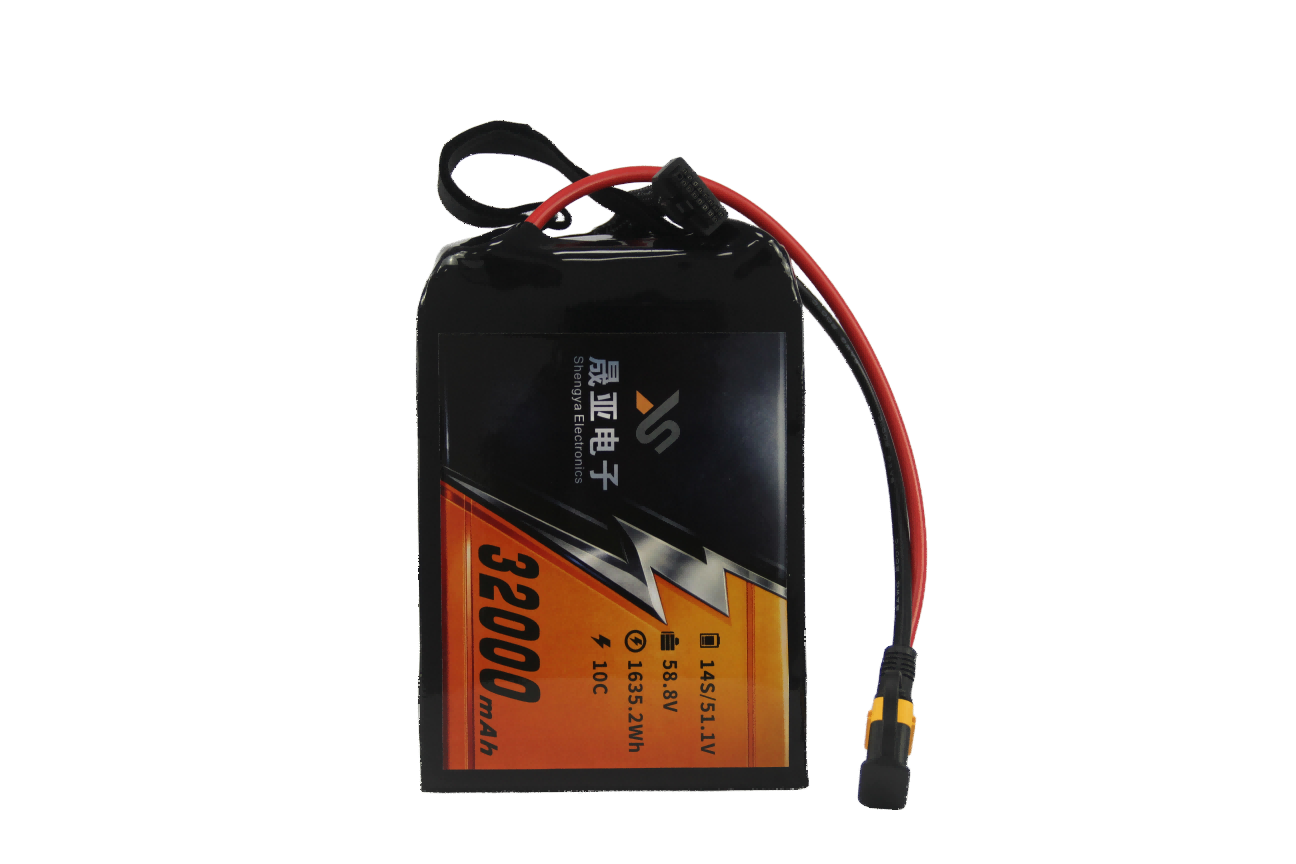

Lithium-polymer technology takes a completely different mechanical approach. Instead of a hard metal tube, they use a flexible "pouch cell" design. They replace the traditional liquid electrolyte with a polymer gel or semi-solid electrolyte material. Because they do not need a rigid metal casing to hold liquid, engineers can create custom, ultra-thin form factors. This structural flexibility directly enables modern thin-and-light devices. They offer a much lighter weight profile. This makes Lipo Battery Cells highly attractive for aviation and wearable applications.
You must weigh the rigid enclosure against the flexible pouch. The rigid metal casing of a standard lithium-ion cell offers high impact resistance. It easily survives blunt force trauma. However, it carries the risk of violent venting if the burst valve fails or pressure builds too rapidly. Conversely, the flexible pouch offers very low impact resistance. A sharp object can easily pierce it. Yet, it provides a safer failure mechanism regarding pressure. The pouch simply expands and swells during an outgassing event, visually warning the user without immediately rupturing under pressure.
Feature | Standard Li-ion | Lithium-Polymer (LiPo) |
|---|---|---|
Enclosure | Rigid metal cylinder or prism | Flexible aluminum-laminate pouch |
Electrolyte | Liquid solvent | Semi-solid polymer gel |
Pressure Response | Builds internal pressure; relies on burst valve | Pouch physically swells to accommodate gas |
Puncture Resistance | Very high | Very low |
Understanding how hardware fails allows you to engineer adequate protections. Both chemistries share similar foundational lithium reactions, but their hazard profiles diverge significantly during stress events.
Thermal runaway represents the most severe hazard for any lithium-based power source. It occurs when an exothermic reaction triggers an uncontrollable temperature spike. Standard cells typically operate safely up to 60°C (140°F). If internal temperatures breach 130°C (266°F), the separator melts. This causes massive internal shorts. Li-ion units react to internal shorts with rapid heat generation. They will aggressively vent toxic gases and fire through their safety valves. By contrast, a Lipo Battery reacts initially by puffing up. As localized melting occurs inside the pouch, the layers separate. If the pouch breaches and exposes the internal lithium to ambient oxygen, violent ignition follows immediately.
Real-world drop and crush scenarios expose the physical weaknesses of your chosen chemistry. A heavy power tool falling off a ladder onto concrete will barely dent an internal 18650 metal cell. The same impact could easily crush a bare pouch cell. The danger peaks during puncture events. If a sharp internal component pierces the protective foil, catastrophic failure is nearly guaranteed. The puncture instantly bridges the anode and cathode. This creates an immediate dead short. Therefore, utilizing these flexible power sources requires robust, rigid protective device enclosures to shield them from consumer tampering or accidental damage.
Operating outside the strict voltage envelope causes severe chemical degradation. Overcharging forces excess lithium ions into the anode, leading to metallic lithium plating. Deep discharging dissolves copper from the current collectors. This copper forms microscopic dendrites. These sharp dendrites eventually pierce the separator and cause internal shorts. Standard metal-cased cells hide this degradation completely. The damage remains invisible until failure occurs. Pouch designs provide a crucial visual warning sign. They reliably swell and outgas as the electrolyte decomposes. This swelling acts as an unmistakable physical alarm to remove the device from service immediately.
You cannot rely on base chemistry alone for safety. Base chemistry is entirely secondary to intelligent control. No modern commercial application should deploy either battery type "bare." Direct connection to a load without a protective circuit is an unacceptable engineering practice.
A robust Battery Management System functions as the central nervous system for your power source. It actively prevents conditions leading to thermal runaway. You must implement specific safeguards to ensure compliance and user safety.
Over-voltage and under-voltage protection: The system must cut off the charging current before the cell exceeds its maximum safe voltage (typically 4.2V per cell). It must also halt discharge before the cell drops below critical thresholds (usually 3.0V). This strict voltage management prevents lithium plating and dangerous dendrite formation.
Thermal monitoring: Intelligent circuits use integrated thermistors to constantly read cell temperatures. If the system detects a high-temperature spike, the BMS will actively throttle performance or completely cut off current to stop exothermic heat generation.
Cell balancing: Multi-cell packs naturally drift out of sync over time. A good BMS continuously balances the load across all cells. This prevents a single unit from experiencing localized overcharging while others remain undercharged.
Adding a high-quality BMS impacts both your project budget and physical footprint. Space-constrained devices struggle to accommodate complex control boards. Engineers must carefully design custom Printed Circuit Boards (PCBs) to fit alongside the power cells. Despite the added cost, you cannot compromise on control circuitry. Cutting corners on thermal sensors or balancing chips directly increases product liability risks.
Beyond structural and electrical engineering, you must navigate severe logistical constraints. Global supply chains treat lithium energy products as hazardous materials. You must prove safety through rigorous testing before shipping a single unit.
Global market access requires strict regulatory compliance. You must obtain specific certifications. The UN38.3 certification is mandatory for transportation safety. It subjects your units to altitude simulation, thermal testing, vibration, and shock testing. The UL 1642 standard specifically governs consumer safety regarding lithium batteries. It ensures the unit can withstand abusive conditions without catching fire. Additionally, the IEC 62133 certification is a critical benchmark for portable electronic applications sold internationally.
Assembly line risks often dictate product success. Hard-cased cylinders handle automated manufacturing well. They easily roll down assembly tracks. In contrast, assembling devices with Lipo Battery Cells requires strict handling protocols. Factory workers must avoid micro-punctures from sharp tools. They must never fold or forcefully bend the polymer pouches. A tiny crease on the foil edge can compromise the hermetic seal. This allows moisture to enter and degrades the electrolyte long before the consumer opens the box.
Logistics teams face heavy freight restrictions for bulk lithium products. Aviation authorities tightly regulate aerial transport. Passenger aircraft generally prohibit bulk shipments entirely. For cargo air transport, you must adhere to strict State of Charge (SoC) requirements. Regulators mandate that units ship at an SoC of 30% or less. This minimizes the available energy if a short circuit occurs mid-flight. These strict rules heavily impact supply chain timelines. You must factor slower, heavily documented freight logistics into your product launch schedule.
Choosing the correct power architecture requires aligning the physical attributes of the chemistry with your product's operational reality. Use the following criteria to guide your hardware specification phase.
Space is not an issue: The device has ample physical space to accommodate standard geometries like thick cylinders.
Rugged operational environments: The application operates in harsh conditions with high vibration or frequent impact risks. Common examples include cordless power tools, e-bikes, and industrial IoT sensors.
Budget constraints: Cost-per-watt-hour is a primary constraint. Mass-produced cylindrical cells offer excellent economy of scale.
Form factor demands: The product requires an ultra-thin, custom, or irregularly shaped power source to fit a sleek design.
Weight sensitivity: Weight is a critical failure point for the application. Aviation and high-end consumer electronics heavily rely on these lighter packs. Lightweight Lipo Battery Cells are essential for maximizing flight times in commercial drones.
Protected housing: The final device enclosure is inherently rigid. It must fully protect the internal battery from consumer tampering, pet bites, or drop damage.
Application Type | Recommended Chemistry | Primary Justification |
|---|---|---|
Wearable Fitness Tracker | Lithium-Polymer | Requires ultra-thin, custom curved shapes; minimal weight. |
Commercial Power Drill | Lithium-Ion | Requires high durability against drops and extreme vibration resistance. |
Aerial Photography Drone | Lithium-Polymer | Demands extreme power delivery paired with the lowest possible weight. |
E-Bike Battery Pack | Lithium-Ion | Requires cost-effective, easily scalable energy density in a robust casing. |
Once you define the chemistry based on environmental and form-factor constraints, transition immediately to rapid prototyping. Do not design the physical casing in isolation. You must emphasize early consultation with your OEM manufacturer regarding BMS integration. A flawless mechanical fit means nothing if the control board lacks the thermal management capacity to operate safely inside the finalized housing.
Determining which chemistry is "safer" remains highly contextual. Standard Li-ion is mechanically safer against physical abuse due to its robust steel or aluminum casing. However, it requires precise pressure management to avoid catastrophic venting. Conversely, the flexible polymer pouch generally fails in a less pressurized, more predictable manner—provided you properly house it to prevent punctures.
We advise hardware decision-makers to shift their focus away from base chemistry alone. Instead, evaluate the quality of the Battery Management System first. Ensure the structural integrity of your final device enclosure can withstand expected physical abuse. Finally, demand strict adherence to manufacturing quality control. By prioritizing robust circuitry and physical shielding, you can safely deploy either technology in consumer and commercial applications.
A: Swelling occurs due to outgassing when the internal electrolyte decomposes from overcharging, overheating, or aging. This expansion is actually a safety mechanism that prevents sudden explosions by safely accommodating the trapped gas. However, swelling indicates irreversible chemical damage. A bloated unit is highly dangerous, unstable, and must be decommissioned immediately to prevent fire.
A: Both chemistries require chargers that utilize a strict constant-current/constant-voltage (CC/CV) algorithm. While the fundamental charging logic is identical, you must precisely match the maximum voltage cutoffs. Using a charger configured for a different specific voltage chemistry can trigger overcharging and severe thermal hazards.
A: Standard rigid Li-ion cells typically offer a longer operational lifespan. They handle deeper cycle degradation better and maintain internal compression effectively over hundreds of charge cycles. Polymer alternatives tend to age faster under thermal stress, losing capacity more rapidly, which indirectly impacts long-term internal stability.
A: Commercial operators must never throw damaged units into standard waste bins. You must fully discharge them safely (inerting procedures using specific resistor loads or saltwater baths, though methods vary by local law). Always utilize certified e-waste recycling chains equipped to handle hazardous materials and prevent chemical fires in transit.
