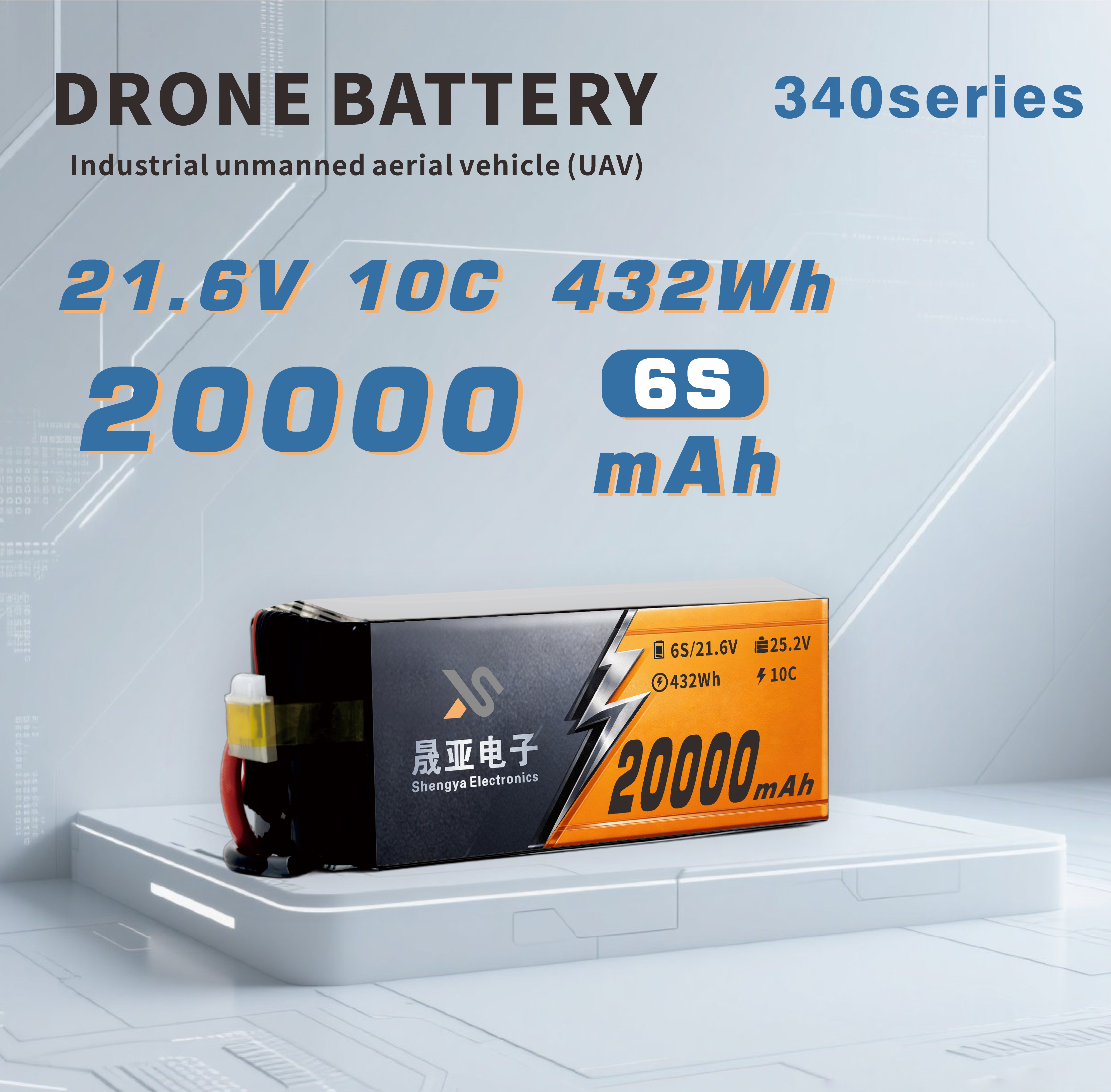

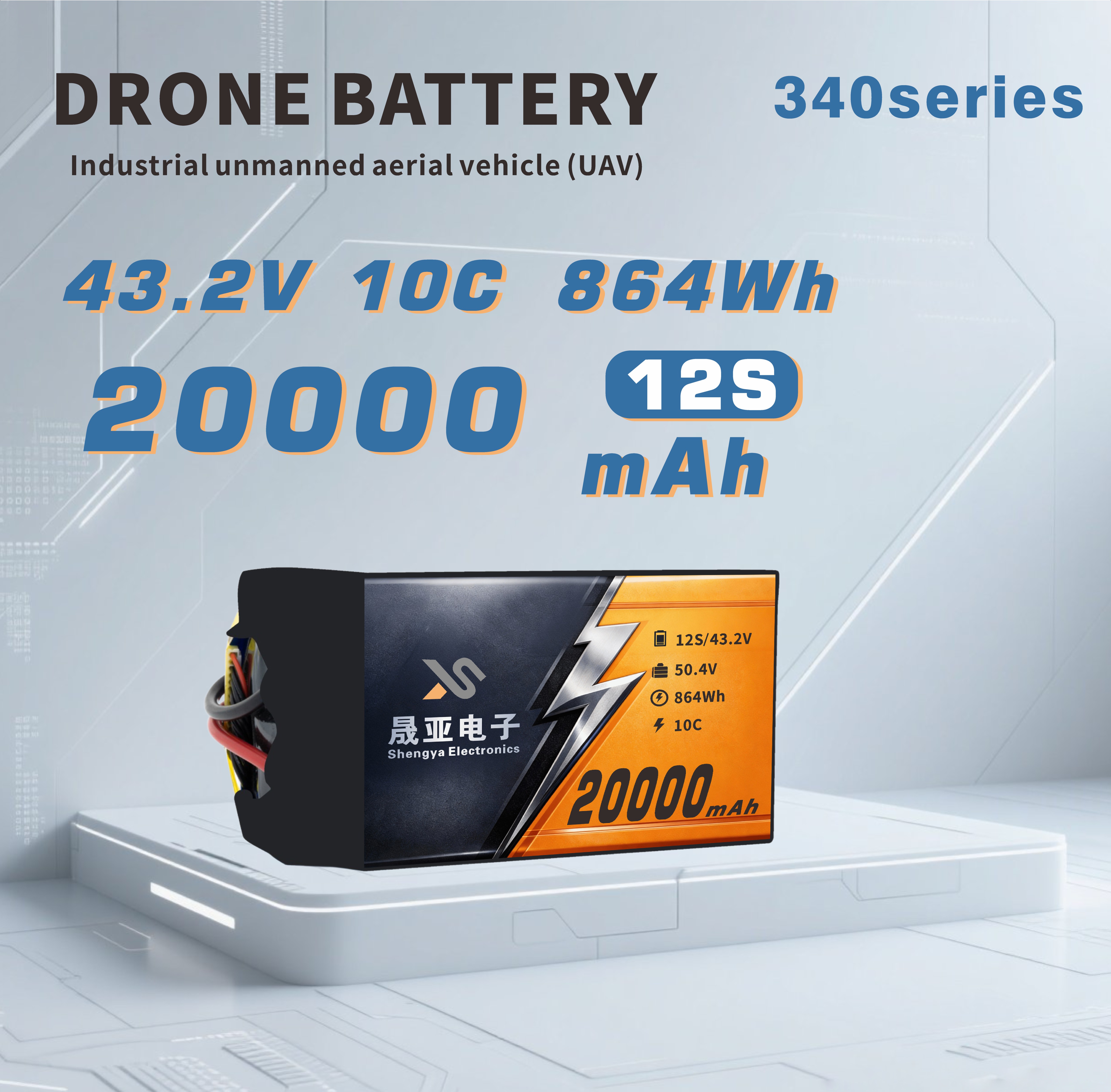

The SY-340 Series 20Ah solid state lithium battery is designed for compact high-power devices requiring stable voltage output, fast response, and reliable energy delivery. With flexible configuration options including 6S, 7S, and 12S combinations, this battery pack delivers strong discharge capability and consistent performance across various industrial and intelligent equipment applications.
Engineered with high-density cells and reinforced structural design, the 20Ah series balances lightweight construction and dependable power output, making it ideal for robotics, UAV systems, portable energy devices, and automated equipment.

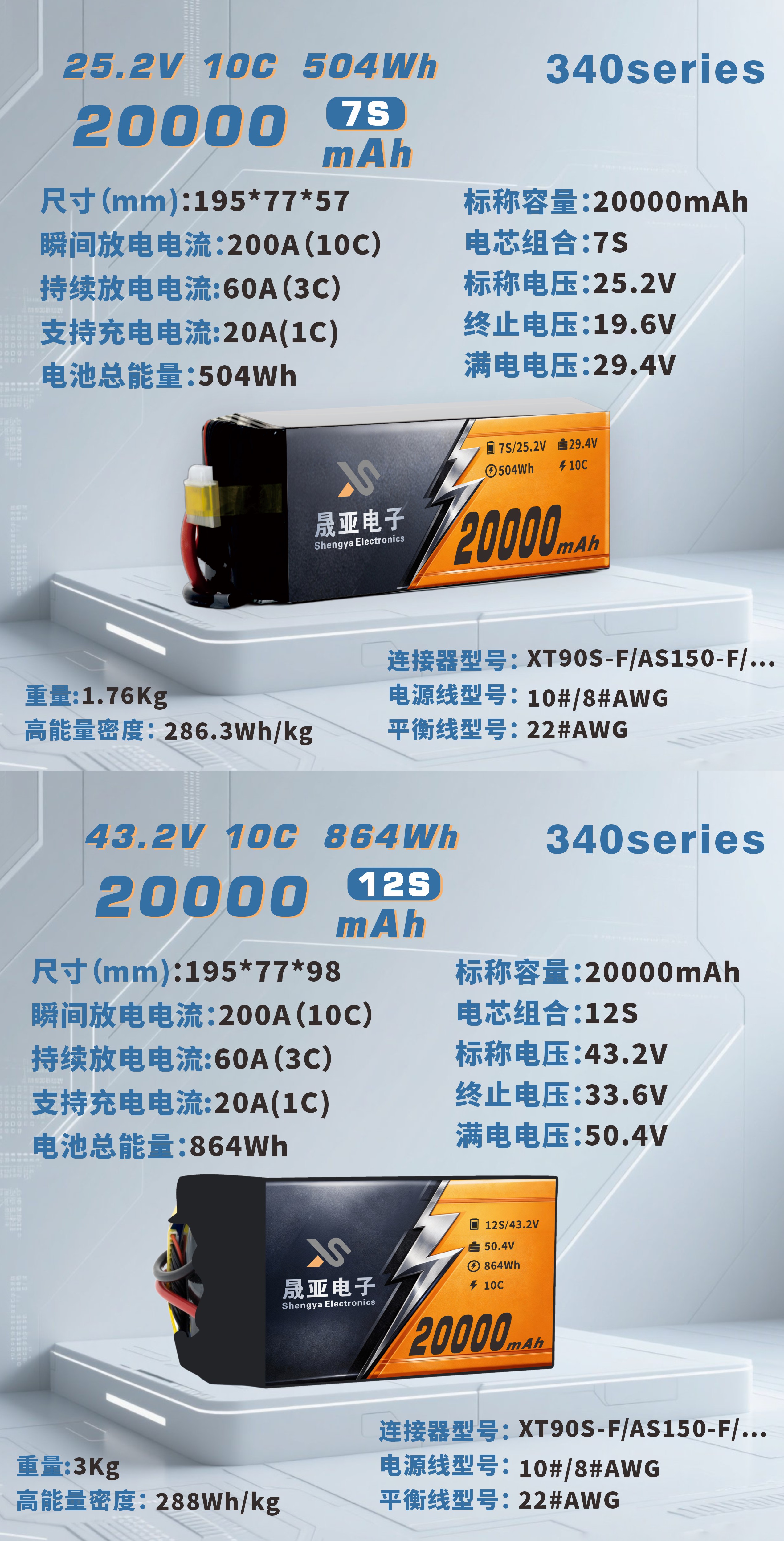

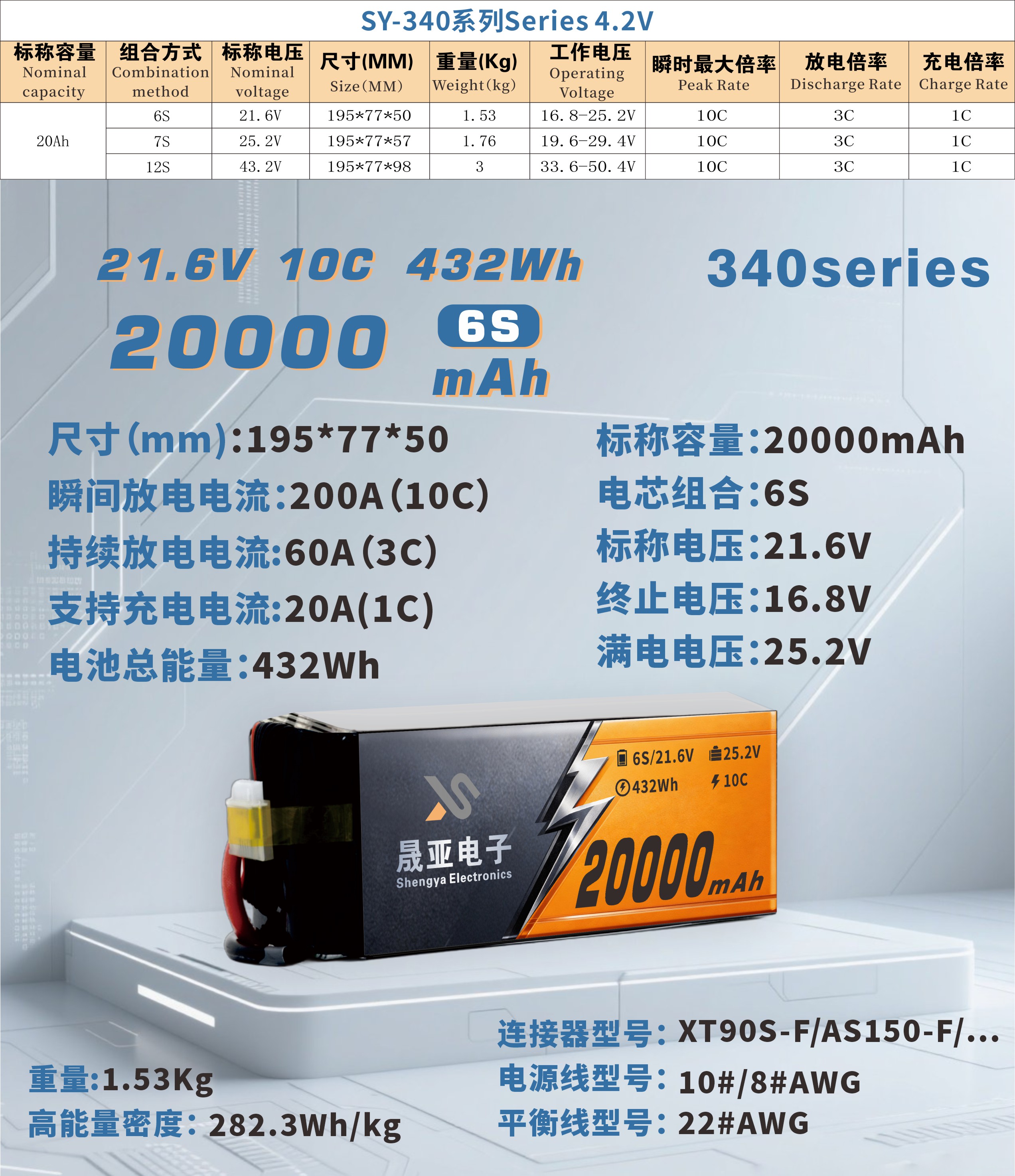

| Nominal Capacity | Combination | Nominal Voltage | Size (mm) | Weight (kg) | Operating Voltage | Peak Rate | Discharge Rate | Charge Rate |
|---|---|---|---|---|---|---|---|---|
| 20Ah | 6S | 21.6V | 195×77×50 | 1.53 | 16.8–25.2V | 10C | 3C | 1C |
| 20Ah | 7S | 25.2V | 195×77×57 | 1.76 | 19.6–29.4V | 10C | 3C | 1C |
| 20Ah | 12S | 43.2V | 195×77×98 | 3.0 | 33.6–50.4V | 10C | 3C | 1C |
Features
Compact high-capacity structure
Optimized 20Ah capacity provides stable power output while maintaining a compact size and manageable weight for portable and embedded applications.
High burst discharge performance
Supports up to 10C peak discharge, ensuring rapid power response for dynamic load equipment such as UAV propulsion and robotics.

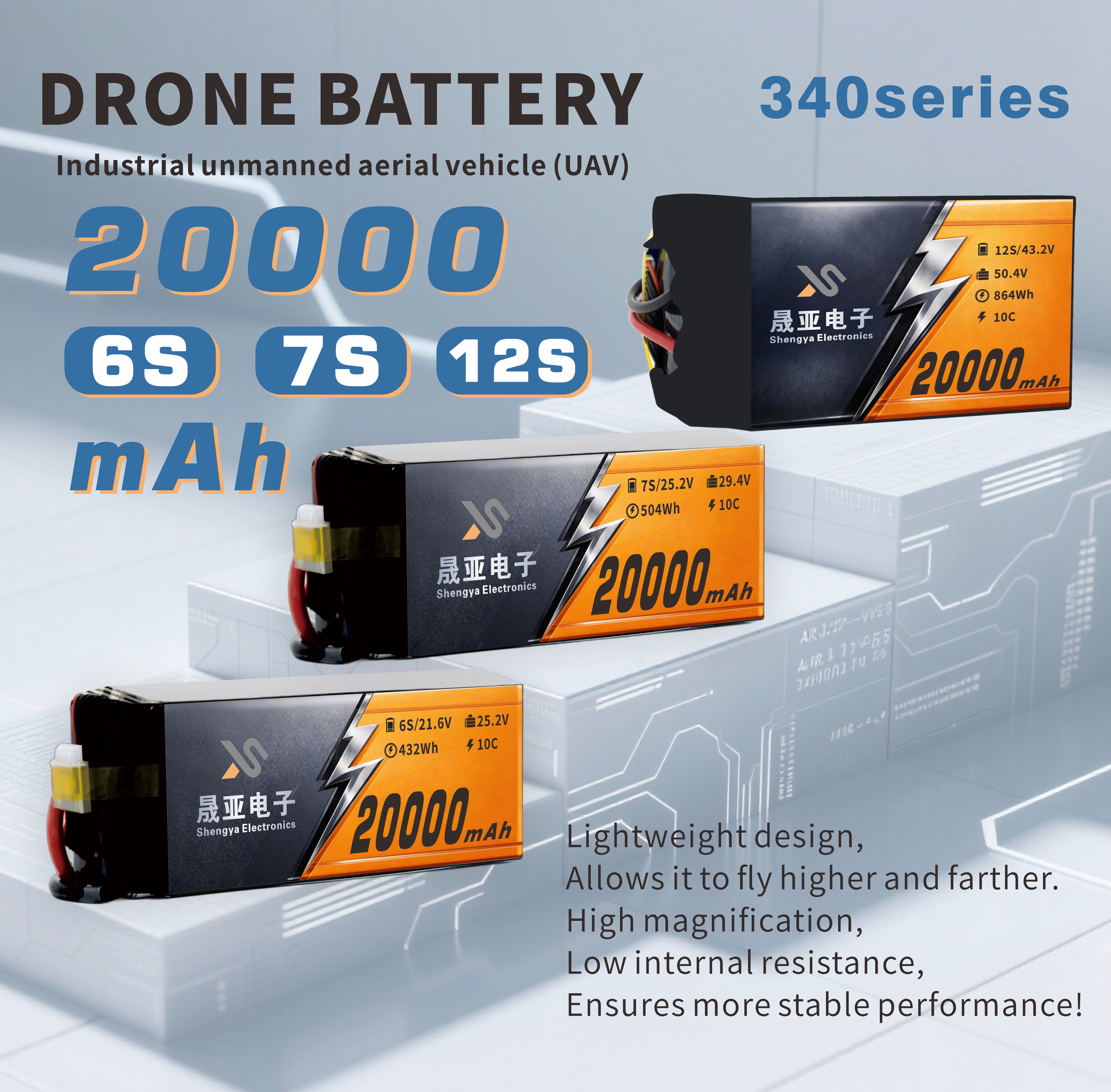

Flexible voltage configuration
Available in multiple series configurations (6S/7S/12S) to meet different voltage requirements across industrial and commercial equipment.
Stable and safe operation
Designed with consistent operating voltage range and reliable charge/discharge parameters for long-term performance stability.
Solid-state lithium battery architecture
Nominal capacity: 20Ah
Nominal voltage options: 21.6V / 25.2V / 43.2V
Operating voltage range: up to 50.4V
Peak discharge rate: 10C
Continuous discharge rate: 3C
Charge rate: 1C
Lightweight structural design
Compact rectangular battery pack configuration
High energy density design
Delivers strong power output within a lightweight and compact structure, ideal for mobile and space-sensitive equipment.
Consistent manufacturing quality
Each battery pack is assembled under strict quality control standards to ensure stable voltage output and long cycle performance.
Flexible OEM customization
Supports custom voltage, connector types, casing design, and communication protocols based on project requirements.
Reliable global supply
Stable production capacity ensures fast delivery and dependable support for OEM and industrial clients worldwide.
This 20Ah solid state lithium battery is widely used in:
Industrial robots and automation equipment
UAV and drone power systems
Portable power devices
AGV and AMR systems
Inspection and monitoring equipment
Electric tools and smart machinery
Communication and emergency devices
Its combination of compact size, strong output, and stable performance makes it suitable for both mobile and stationary intelligent power systems.
Q1: Can this battery be customized for different connectors or BMS?
Yes. Connector type, BMS configuration, communication protocol, and casing design can all be customized.
Q2: Is it suitable for high-power equipment?
Yes. With a 10C peak discharge rate and stable 3C output, it supports high-power demand applications.
Q3: What industries commonly use this battery?
UAV, robotics, automation equipment, portable electronics, and smart industrial devices.
Q4: Do you support OEM and bulk orders?
Yes. We provide OEM/ODM services and stable bulk supply for global clients.
